补充B - 编码纠错

../_images/%E5%B9%BB%E7%81%AF%E7%89%87129.JPG

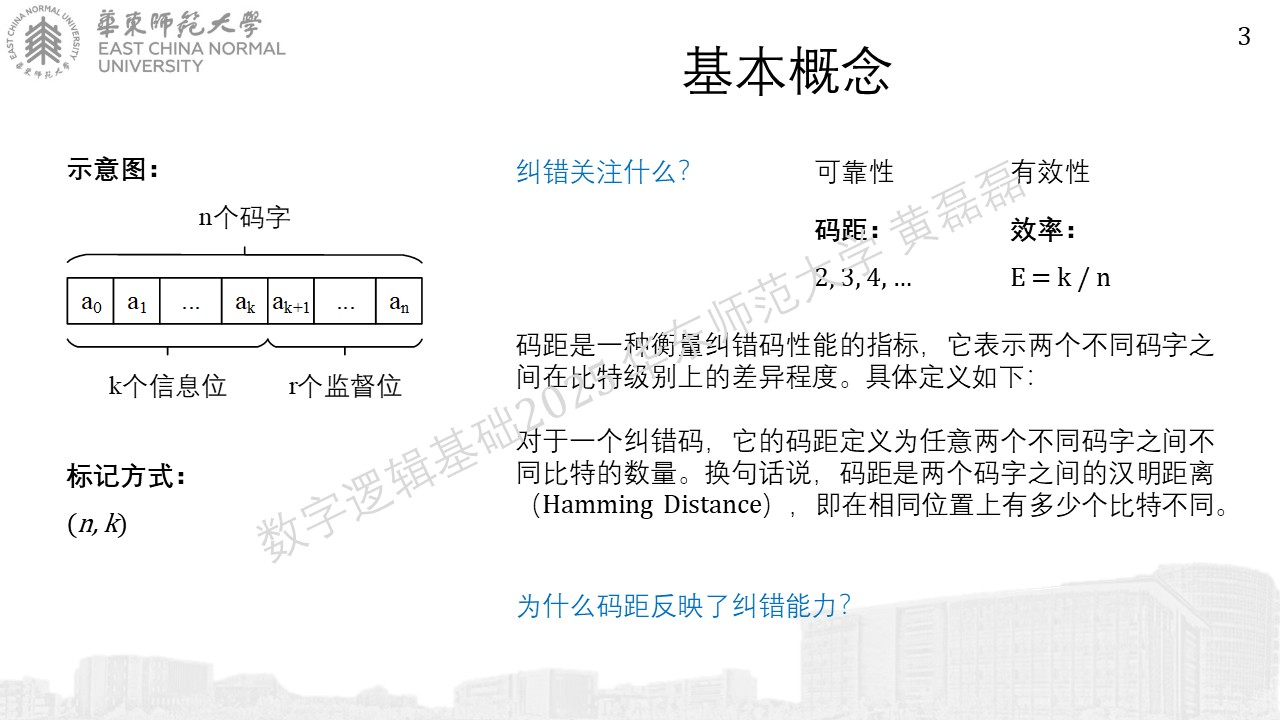

基本概念

../_images/%E5%B9%BB%E7%81%AF%E7%89%87214.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87313.JPG

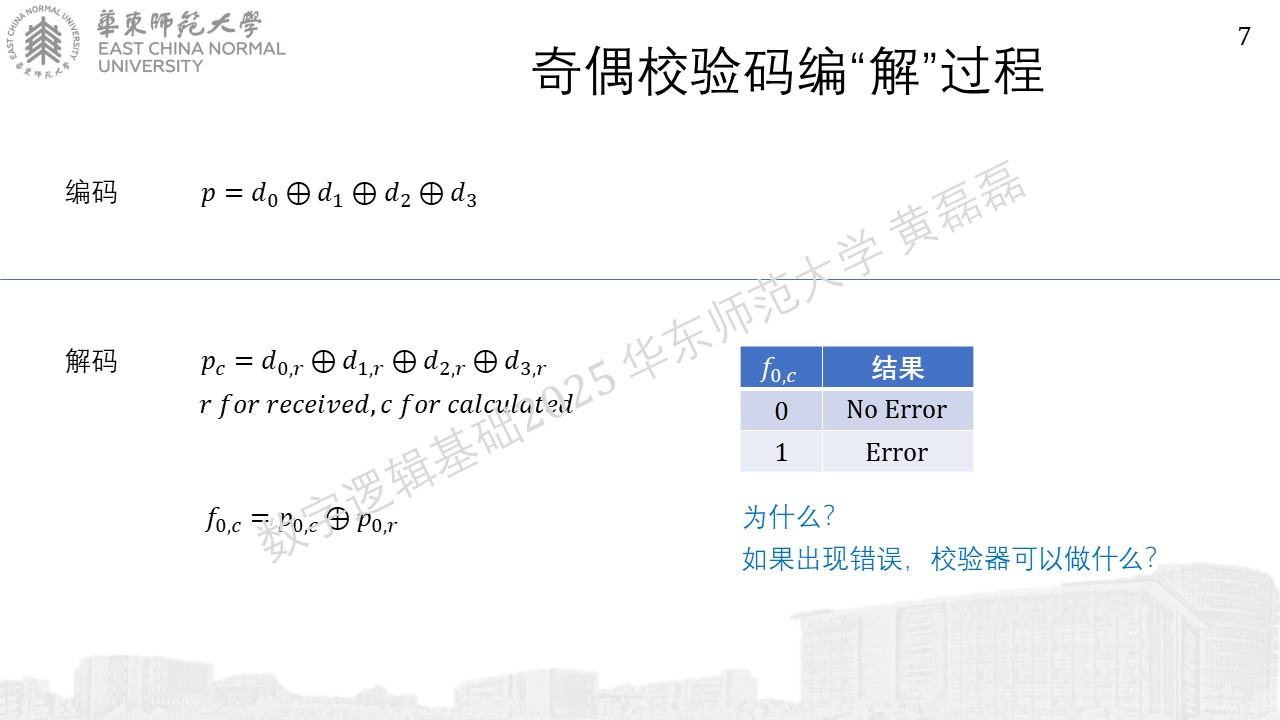

奇偶校验码

../_images/%E5%B9%BB%E7%81%AF%E7%89%87412.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87510.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8769.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8779.JPG

汉明码

../_images/%E5%B9%BB%E7%81%AF%E7%89%8789.JPG

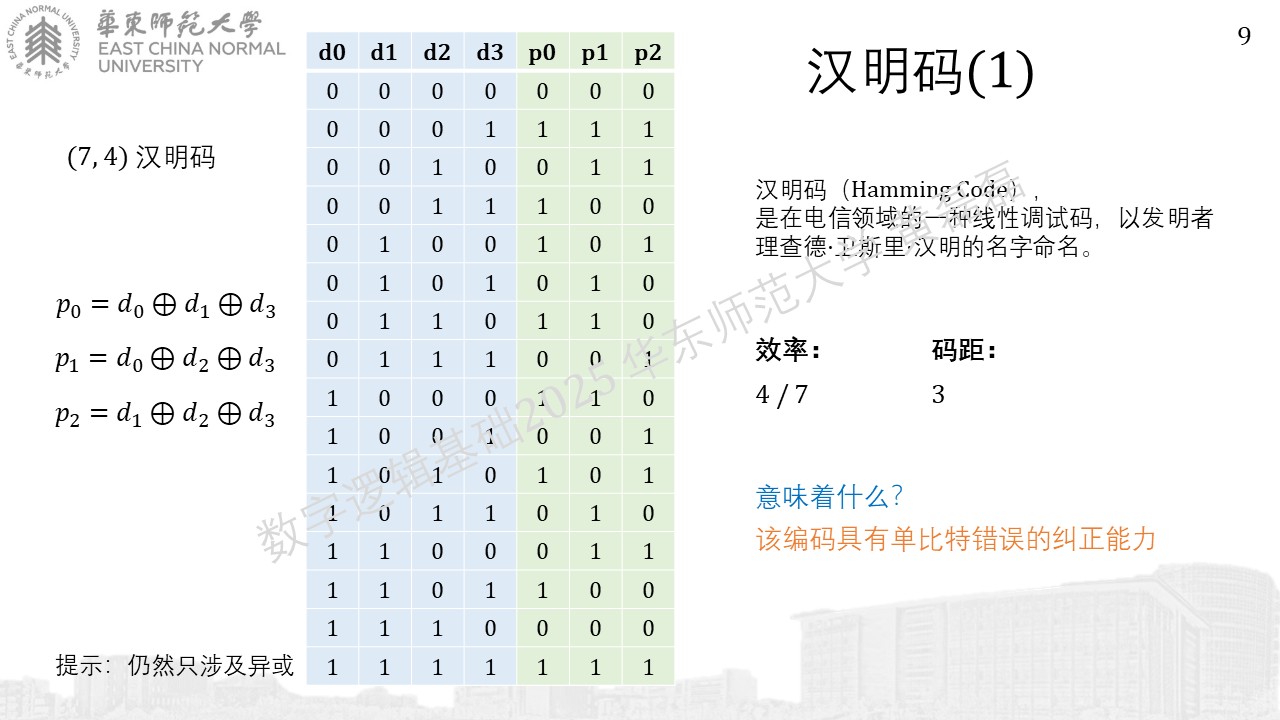

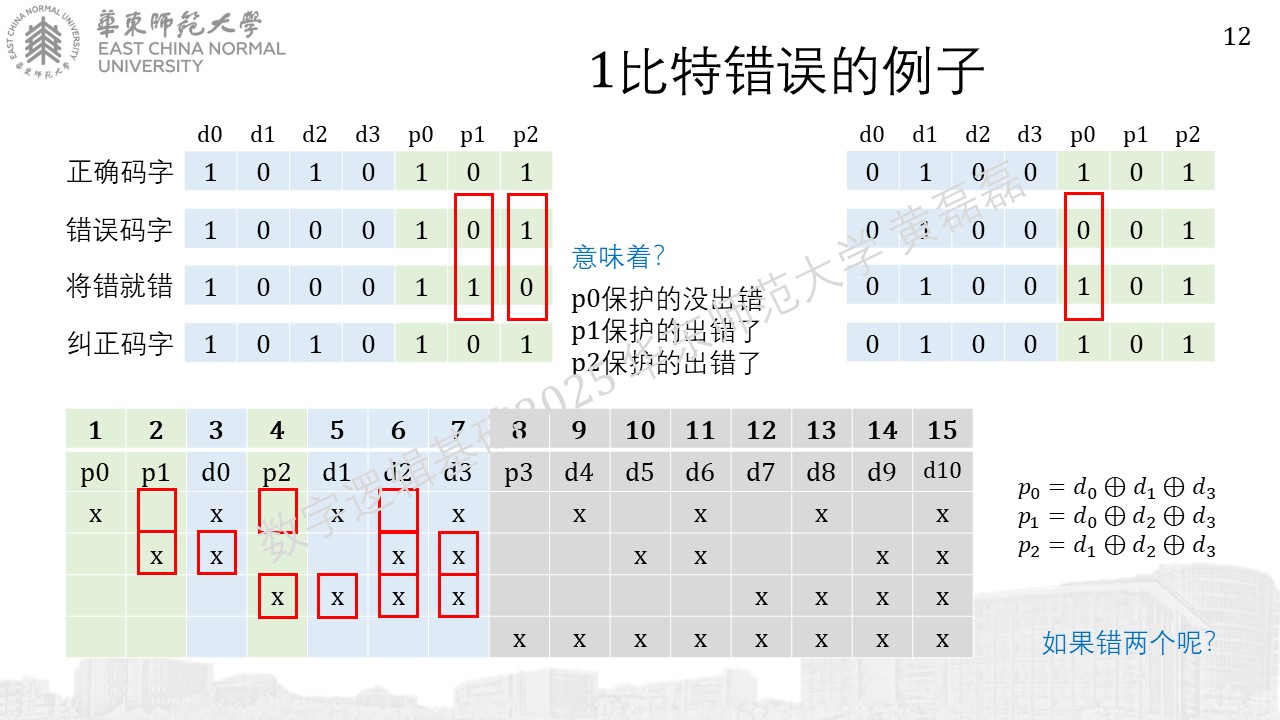

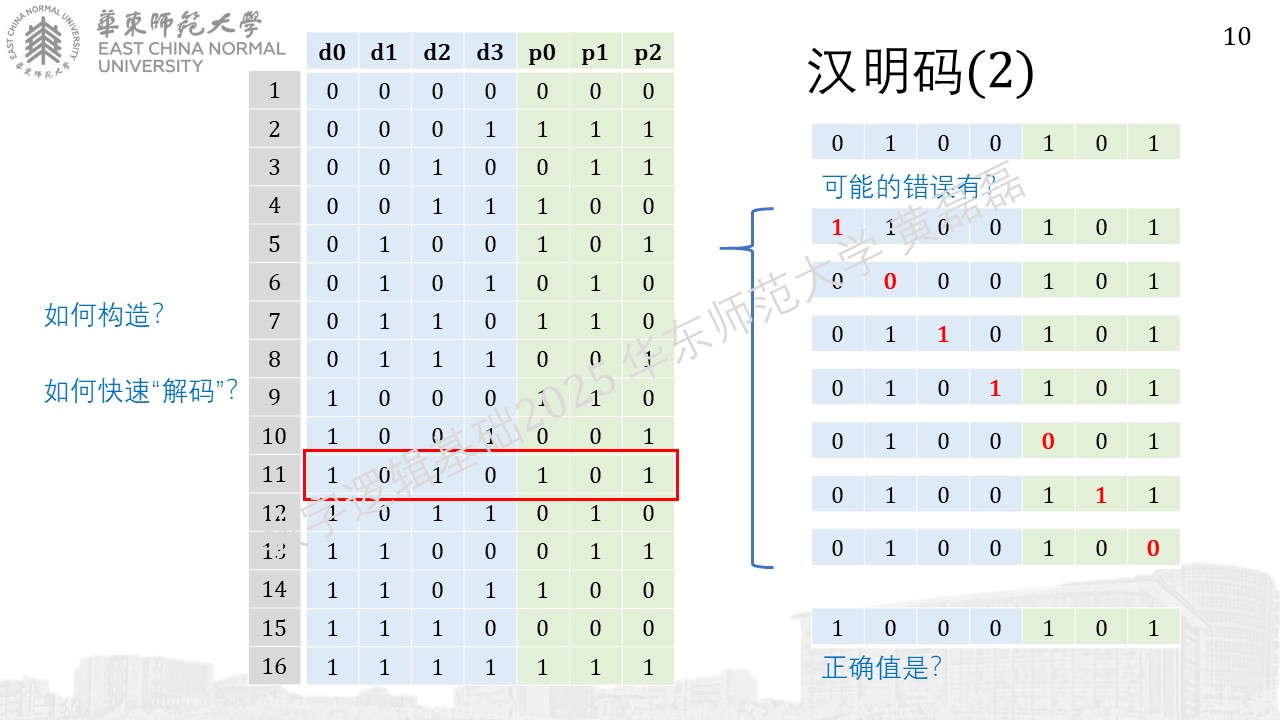

汉明码

../_images/%E5%B9%BB%E7%81%AF%E7%89%8798.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87108.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871112.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871210.JPG

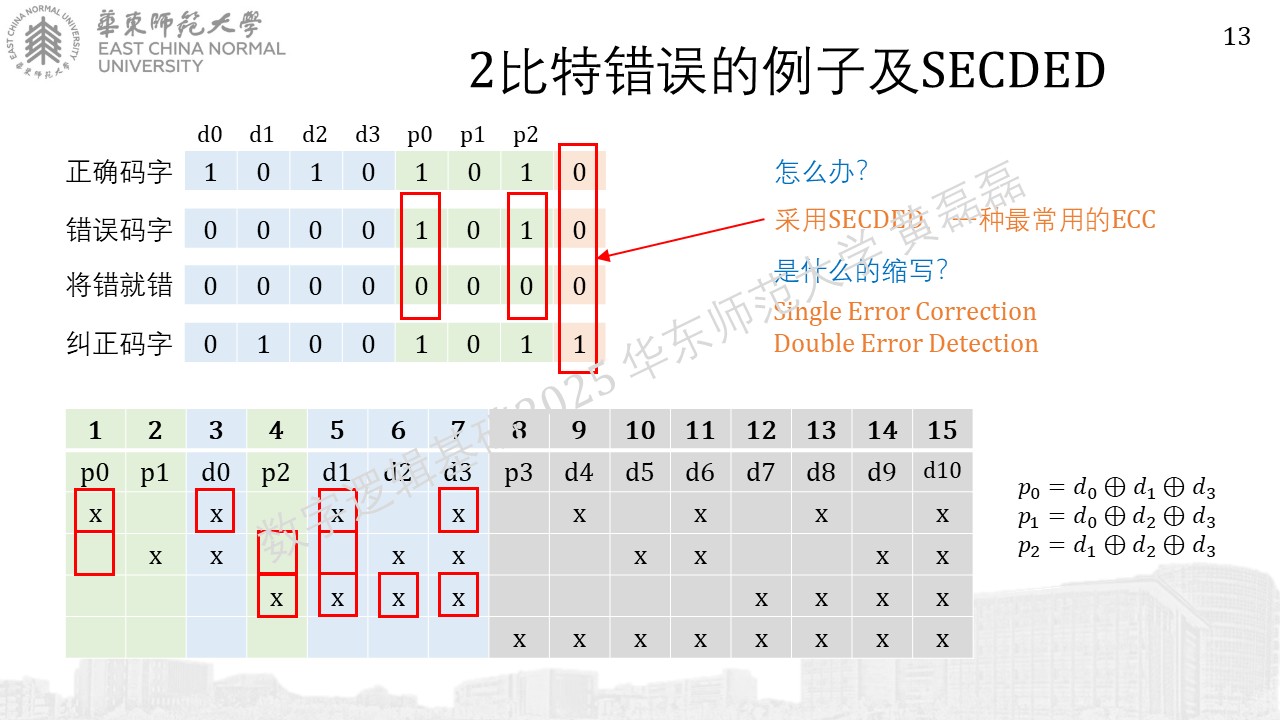

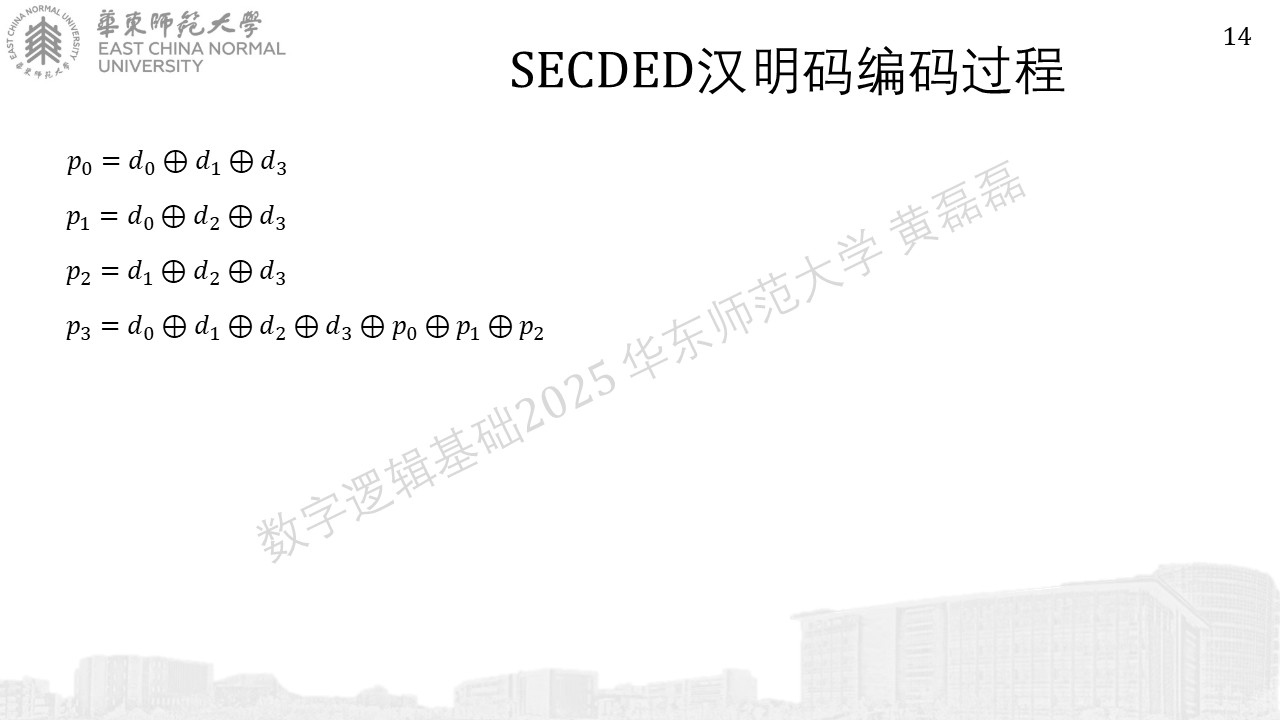

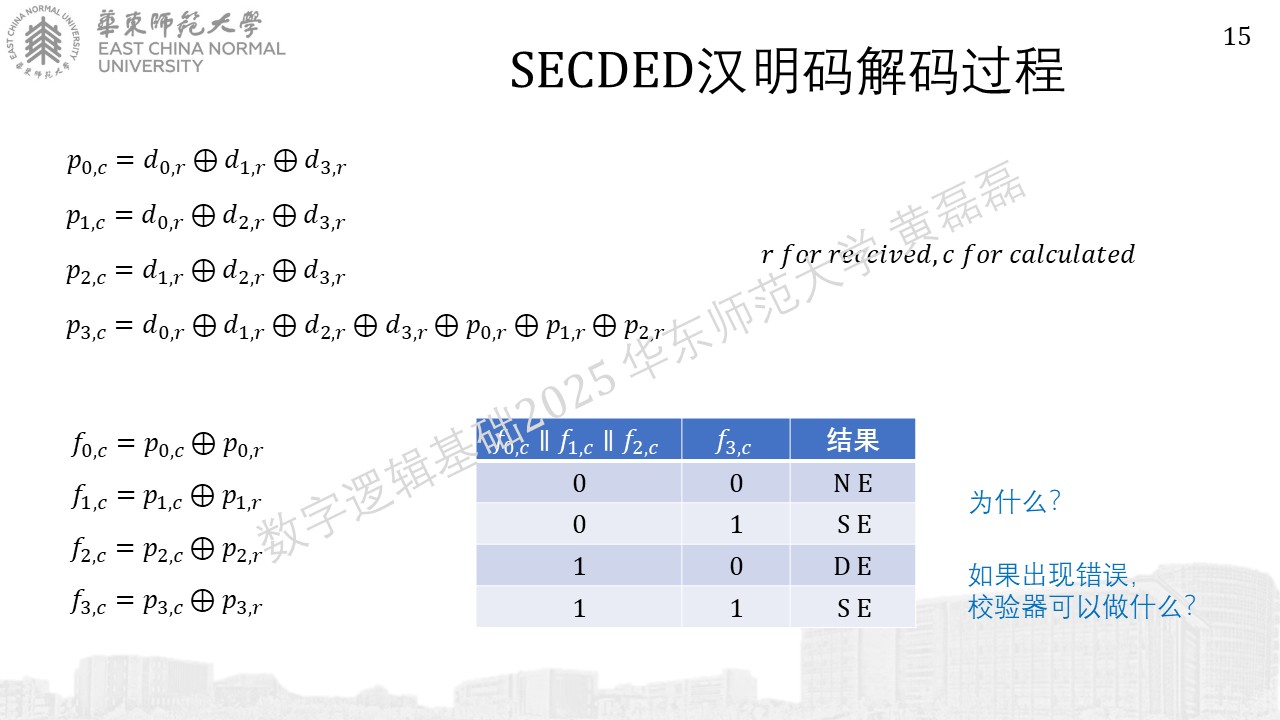

SECDED

../_images/%E5%B9%BB%E7%81%AF%E7%89%87137.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87146.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87156.JPG

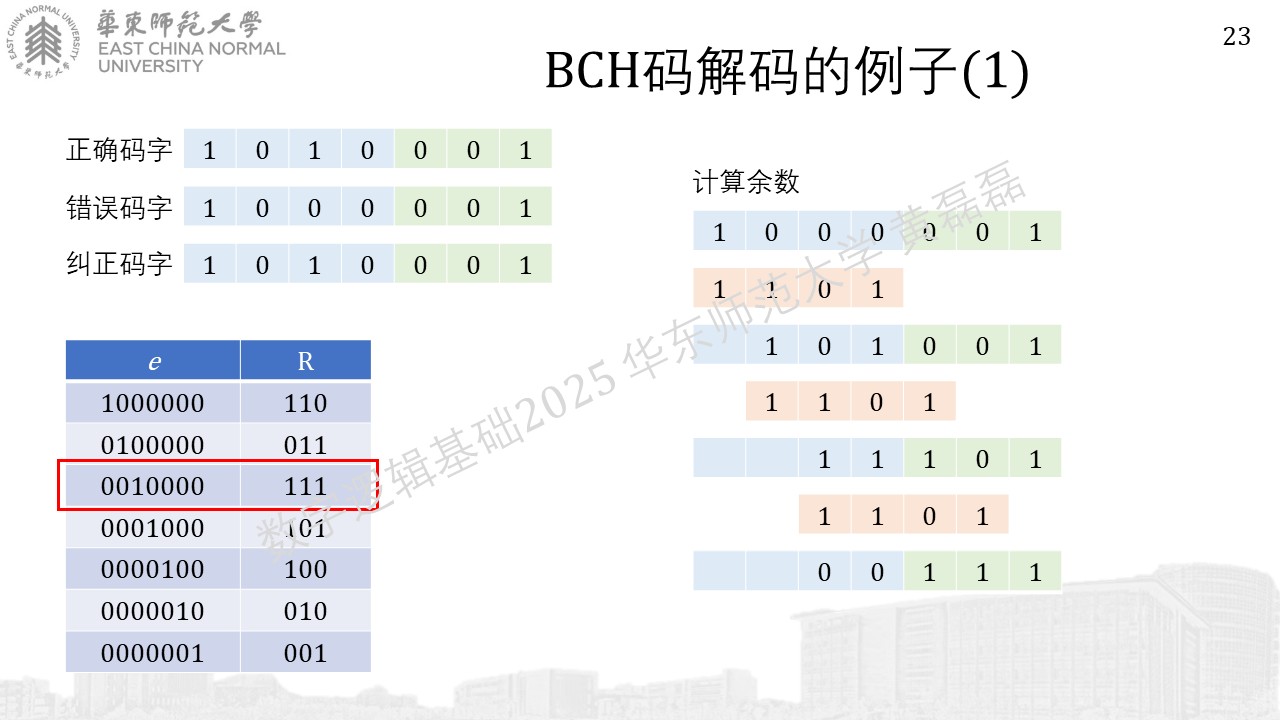

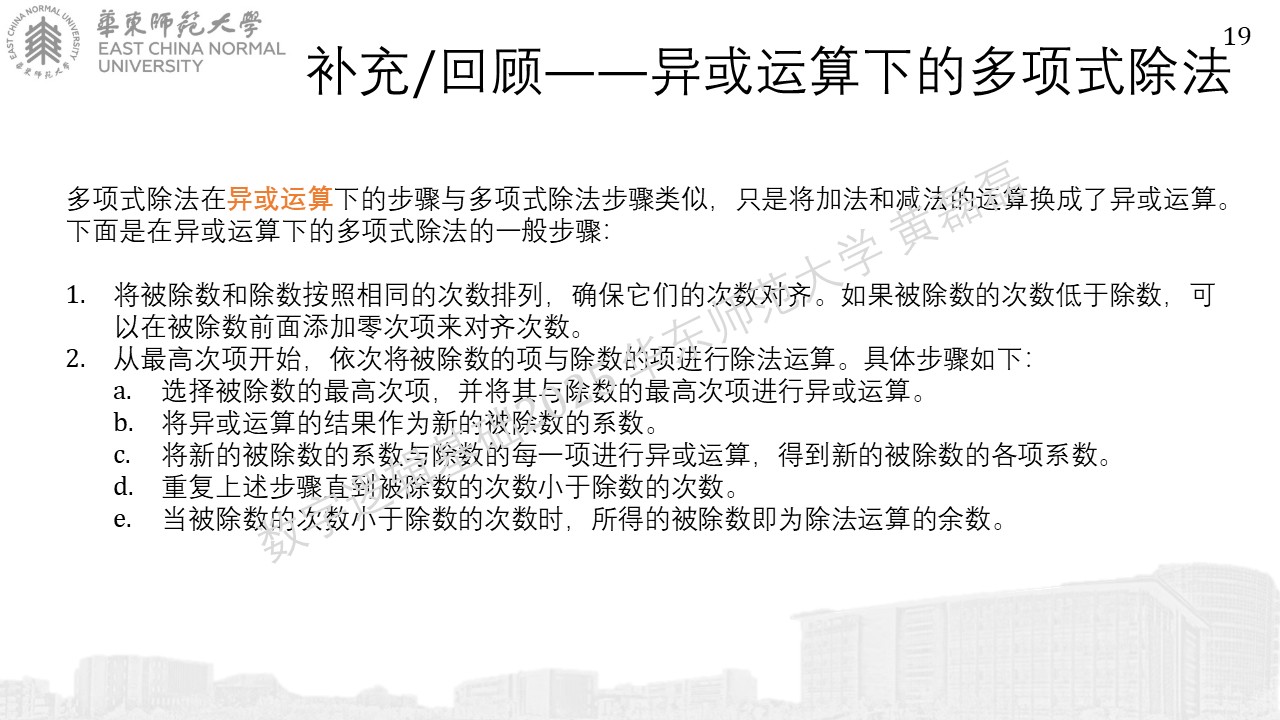

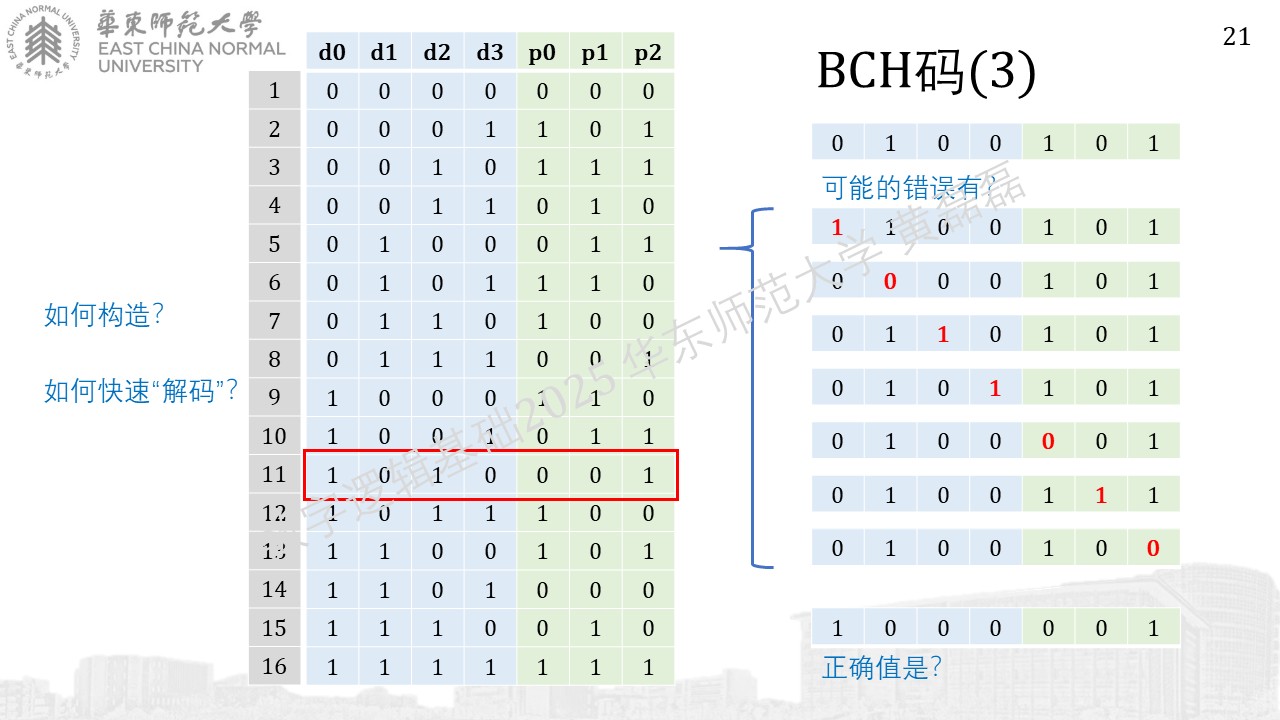

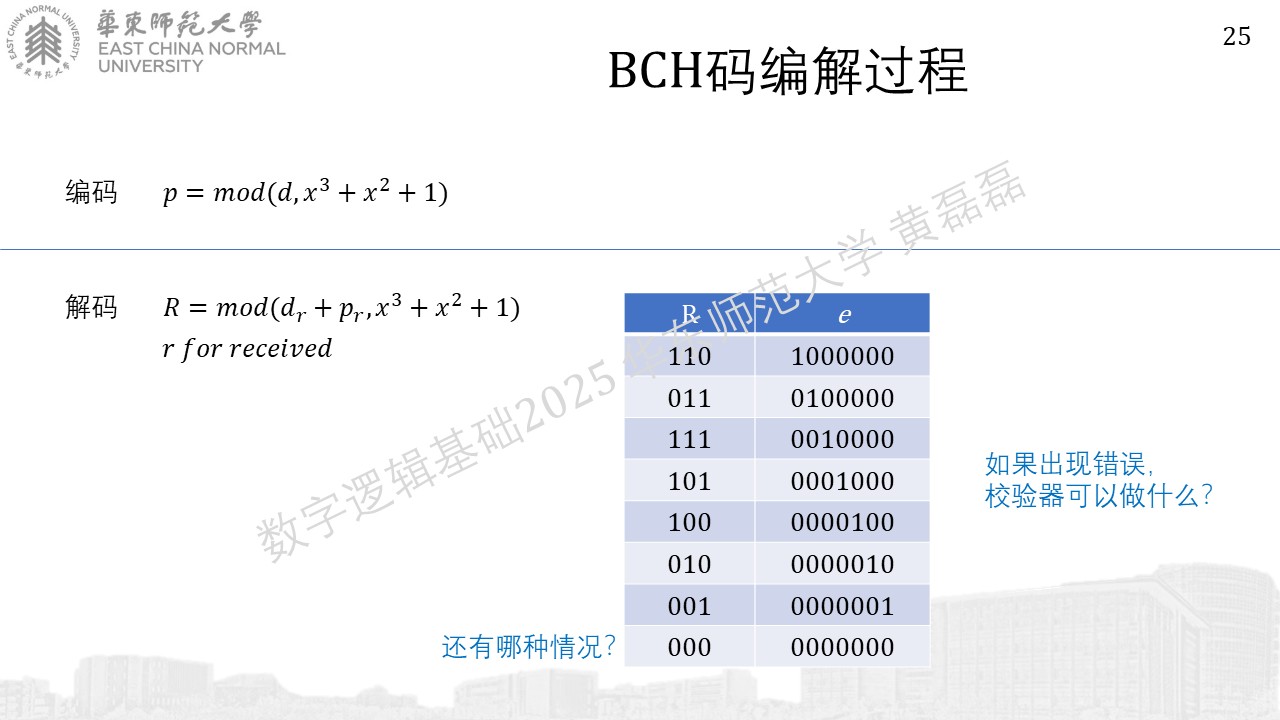

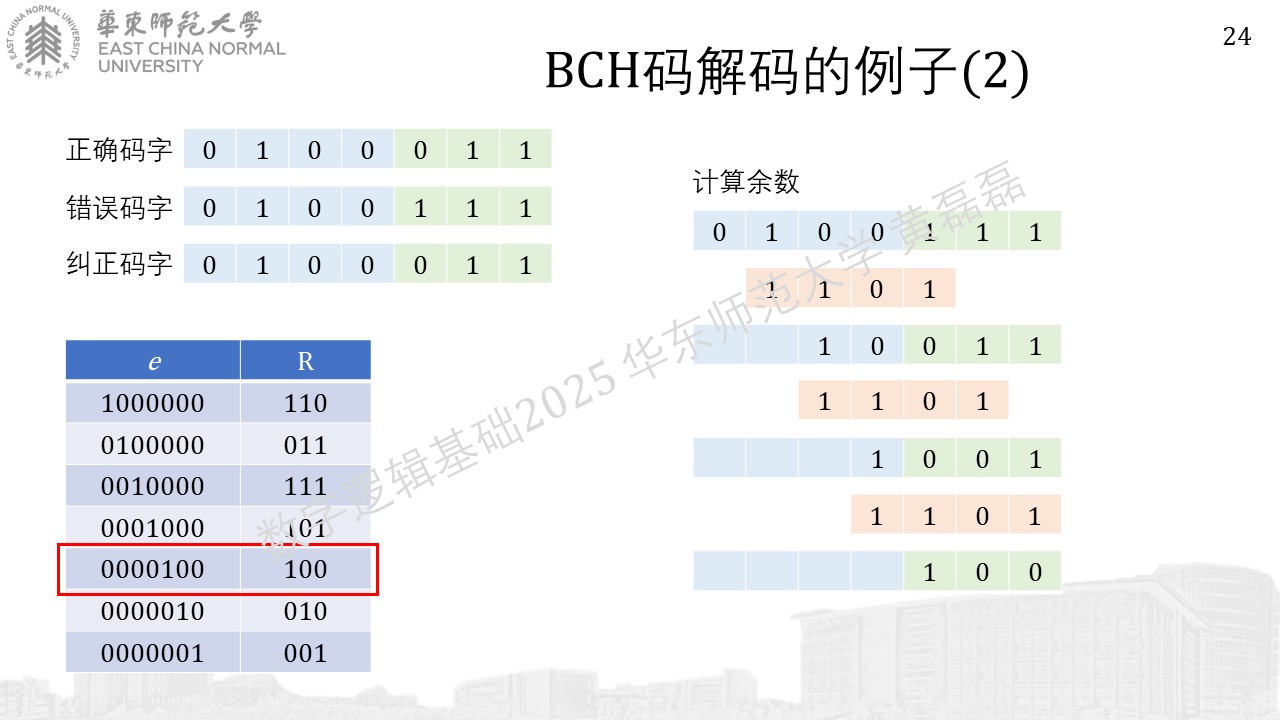

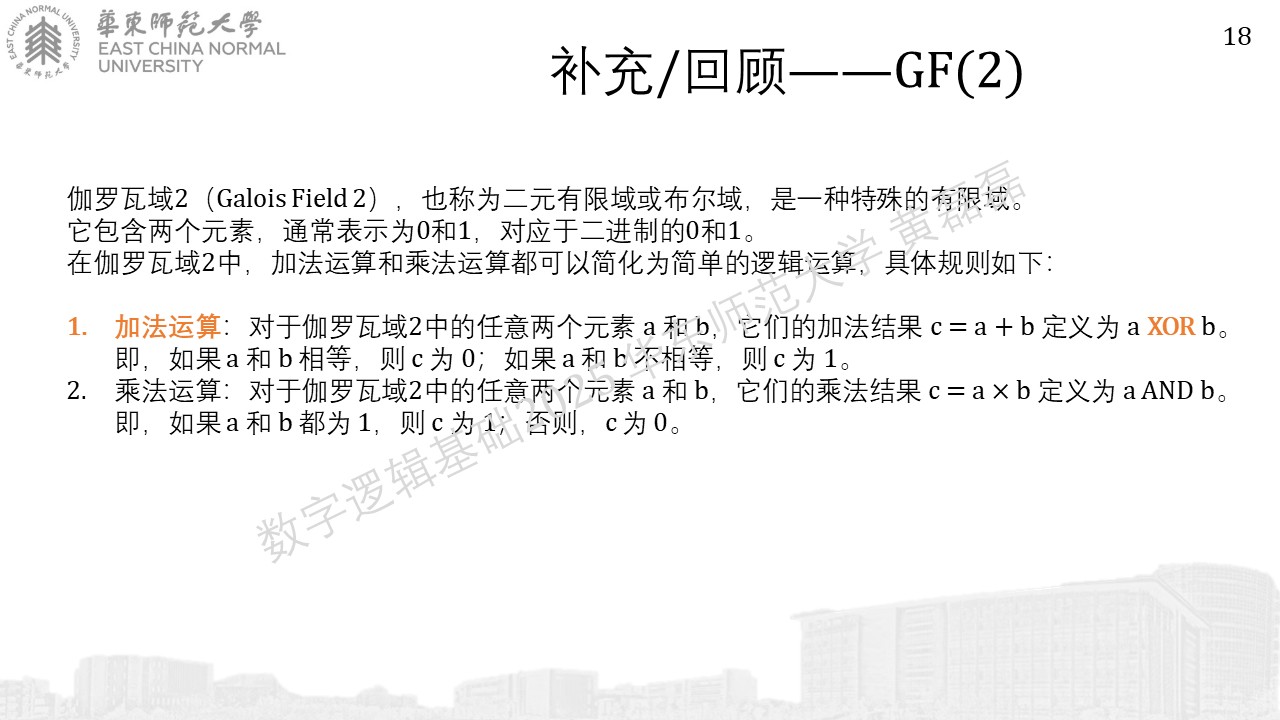

BCH码

../_images/%E5%B9%BB%E7%81%AF%E7%89%87166.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87176.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87184.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87193.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87203.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87215.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87223.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87233.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87242.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87252.JPG

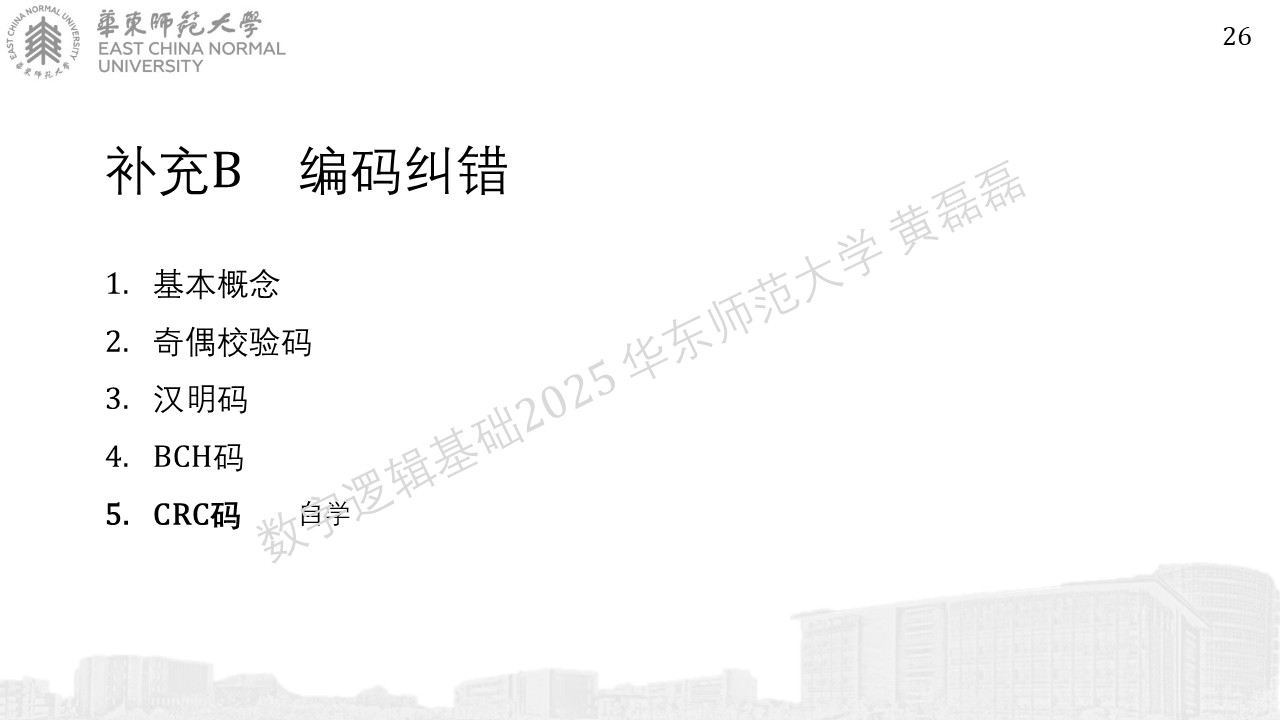

CRC码

../_images/%E5%B9%BB%E7%81%AF%E7%89%87262.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87272.JPG
