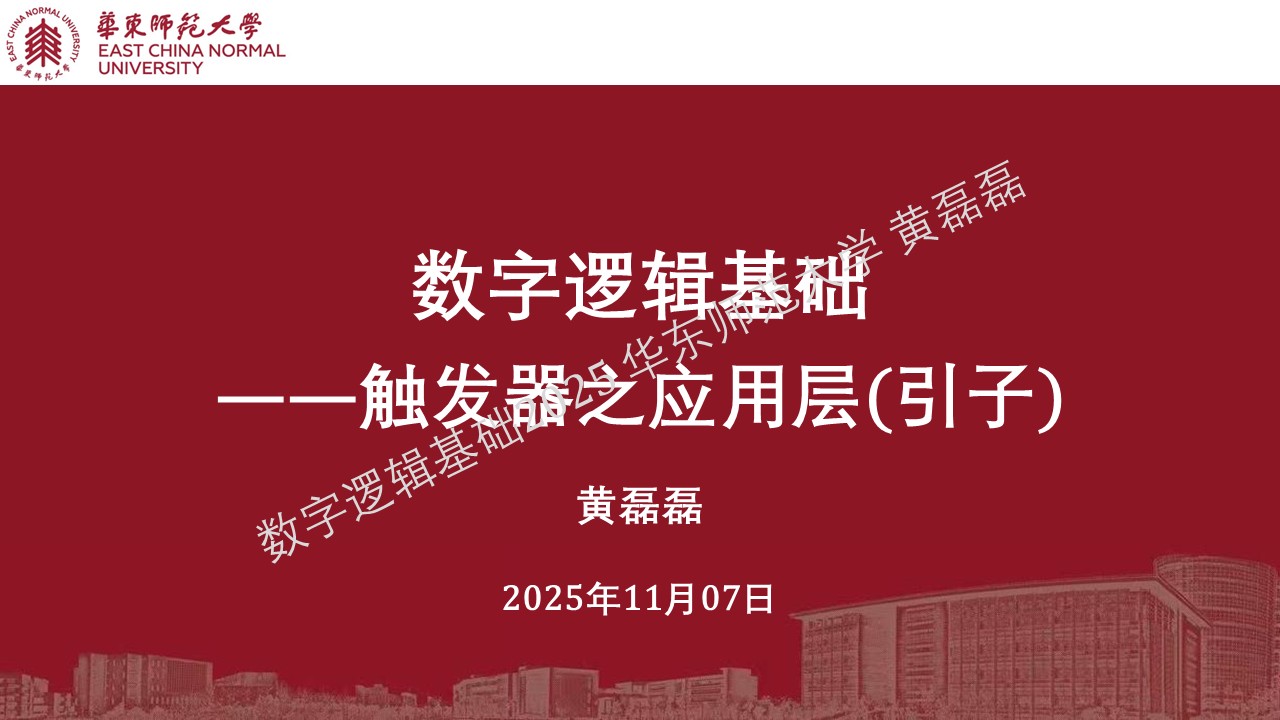

第10讲 - 触发器 - 应用层

../_images/%E5%B9%BB%E7%81%AF%E7%89%871101.JPG

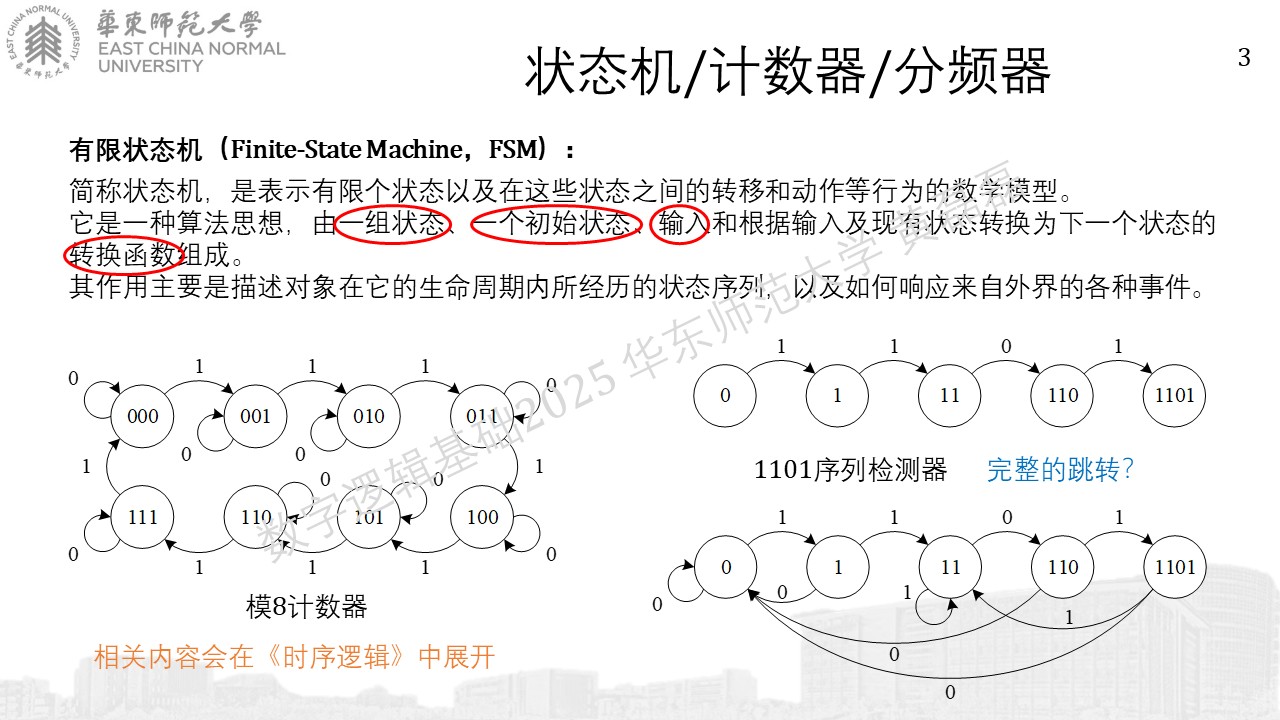

状态机/计数器

../_images/%E5%B9%BB%E7%81%AF%E7%89%87246.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87340.JPG

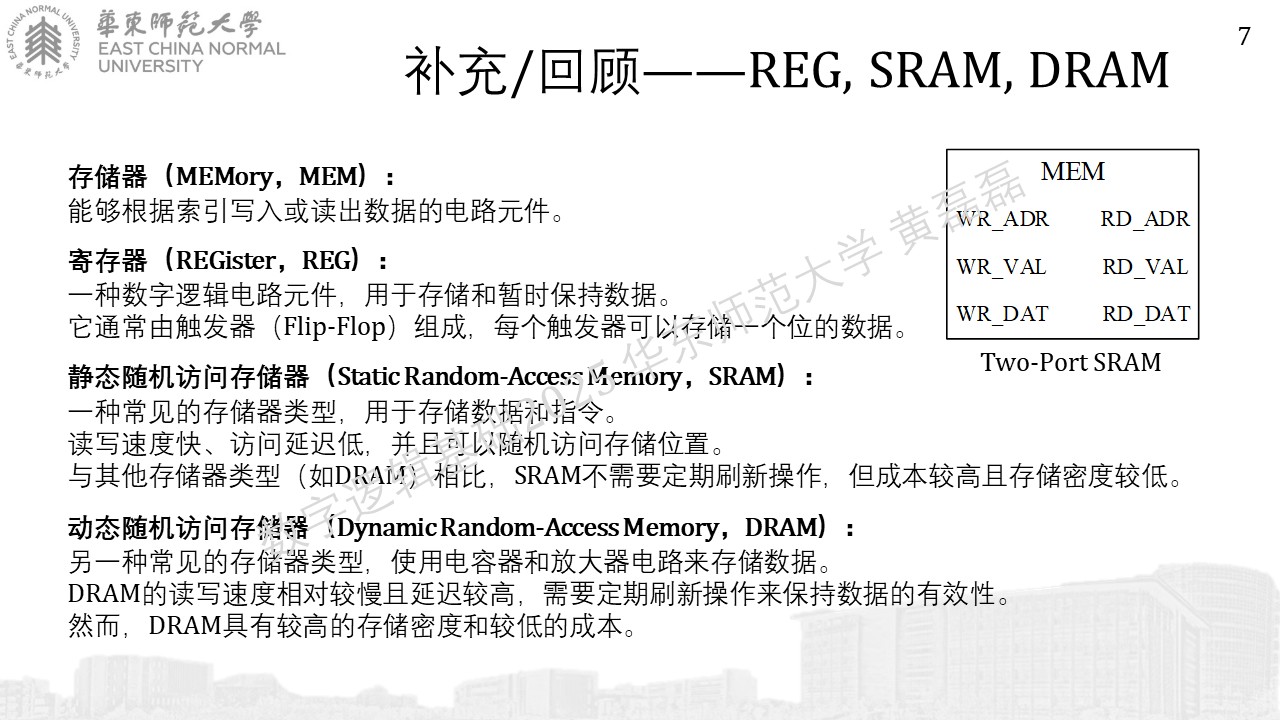

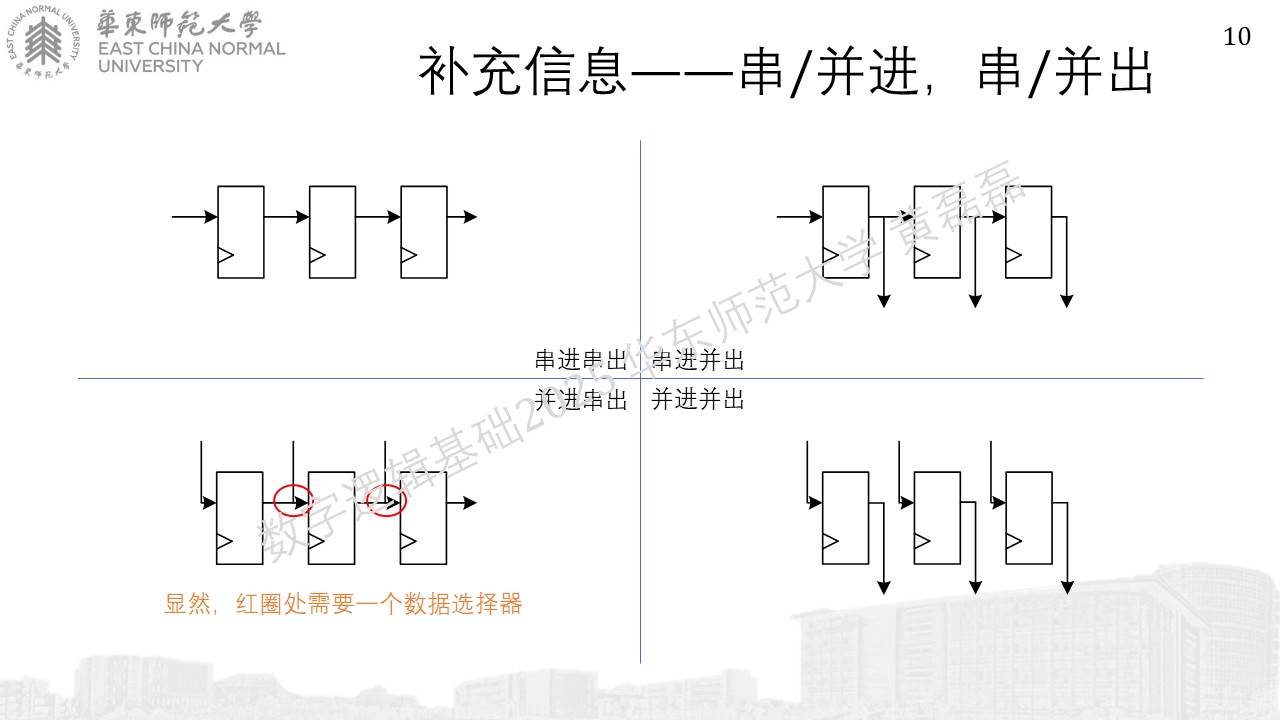

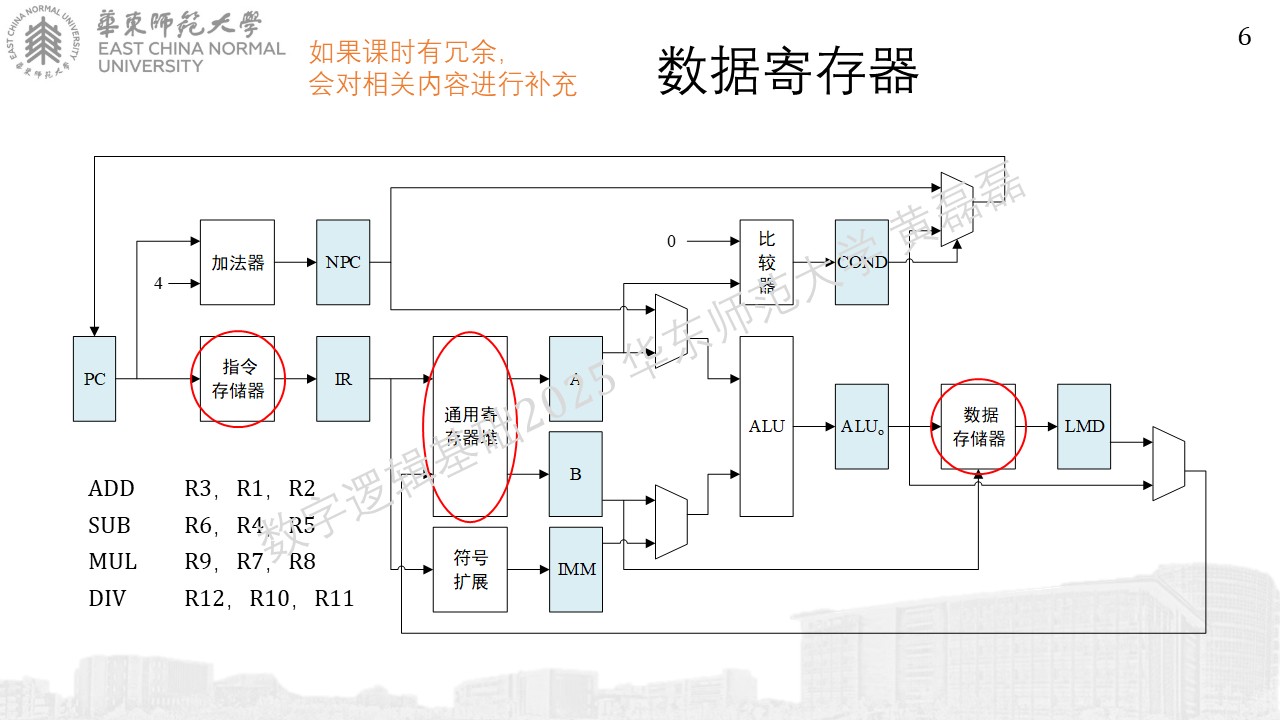

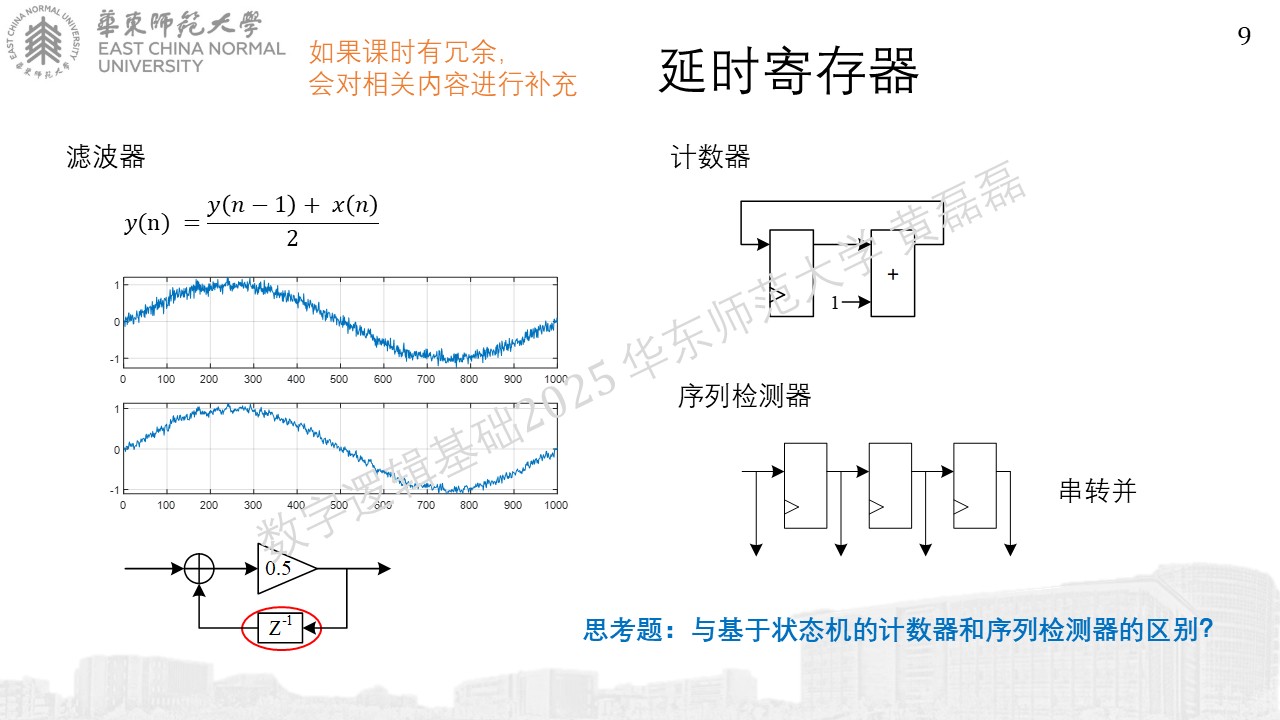

寄存器/延迟单元

../_images/%E5%B9%BB%E7%81%AF%E7%89%87430.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87528.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87626.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87721.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87820.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87919.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871018.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871125.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871222.JPG
