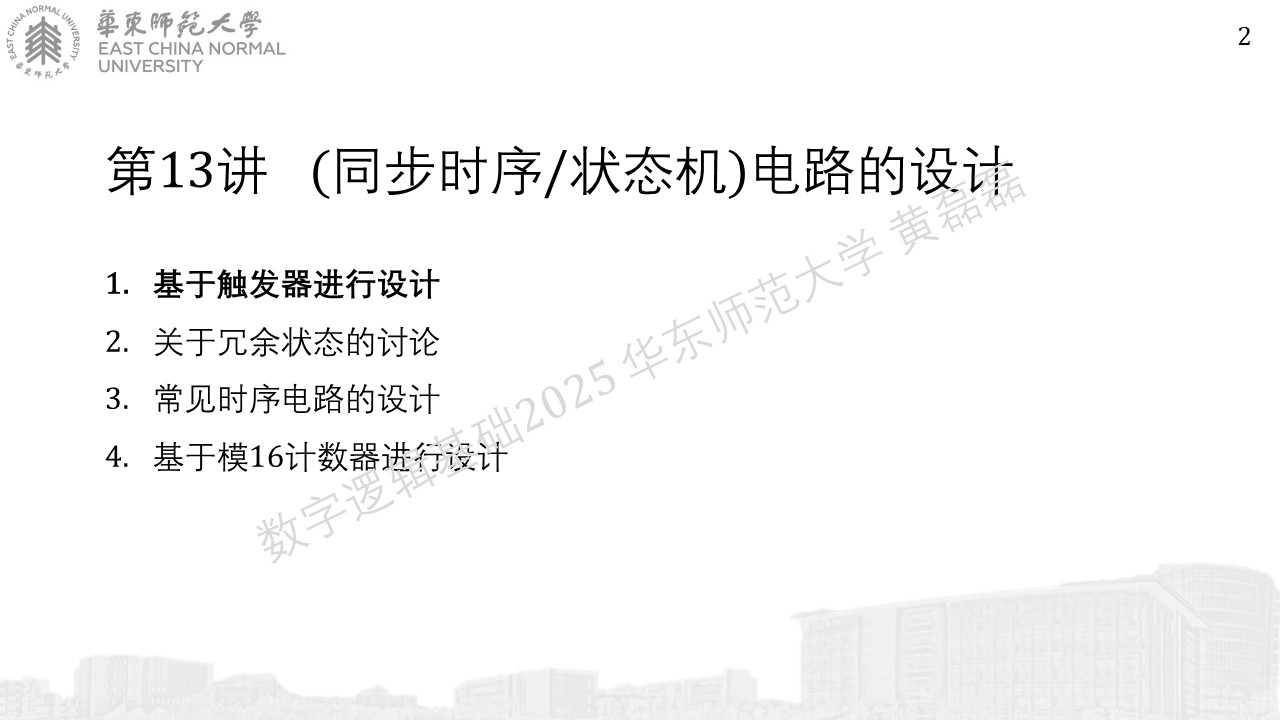

第13讲 - 同步时序(状态机) - 电路的设计

../_images/%E5%B9%BB%E7%81%AF%E7%89%871132.JPG

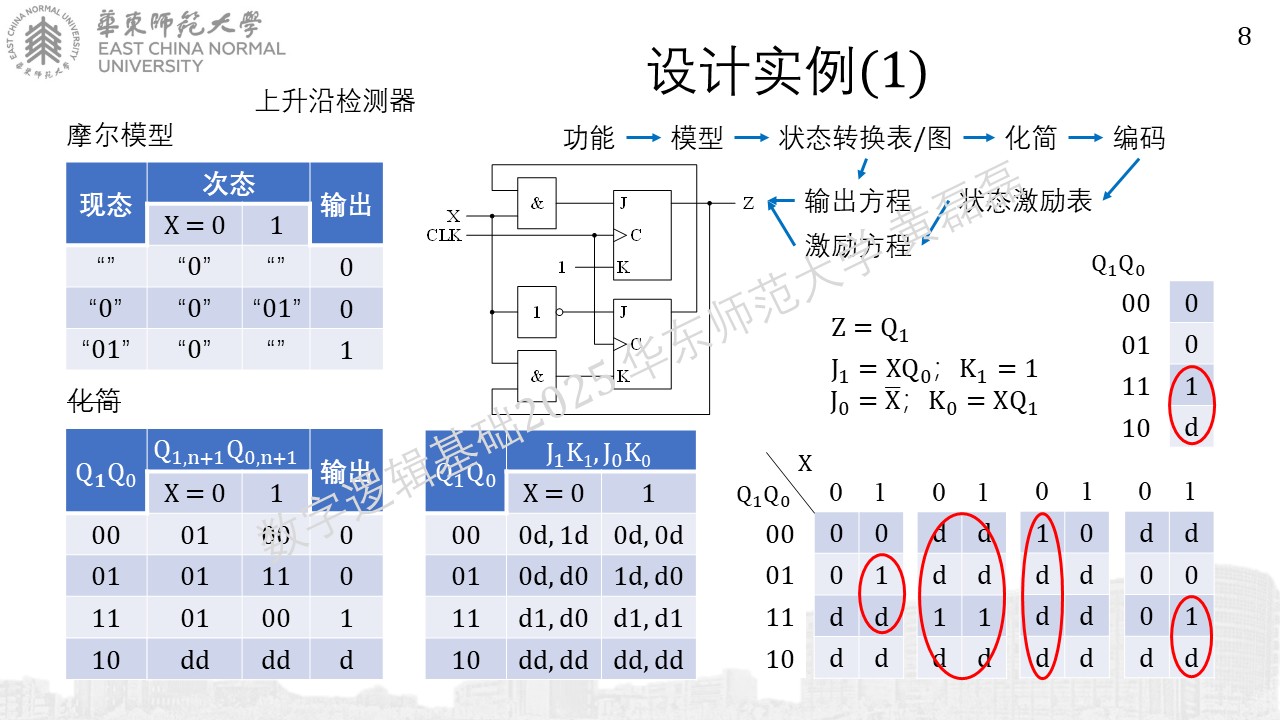

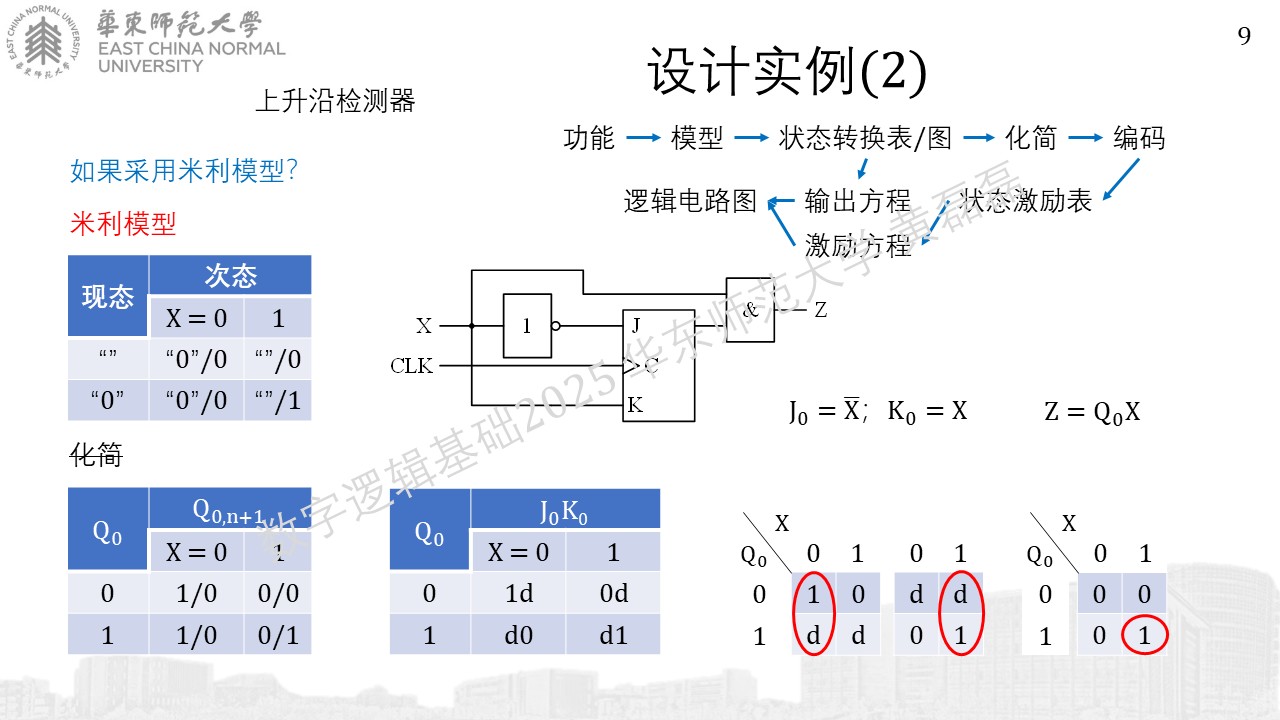

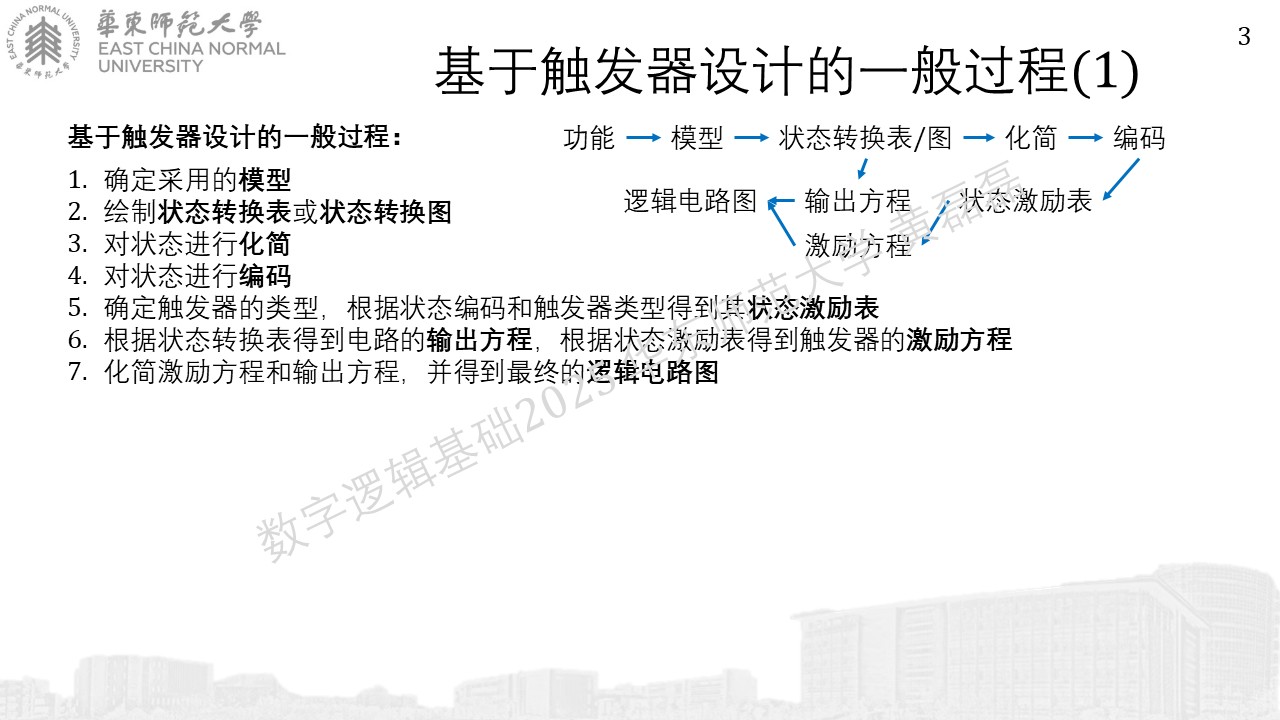

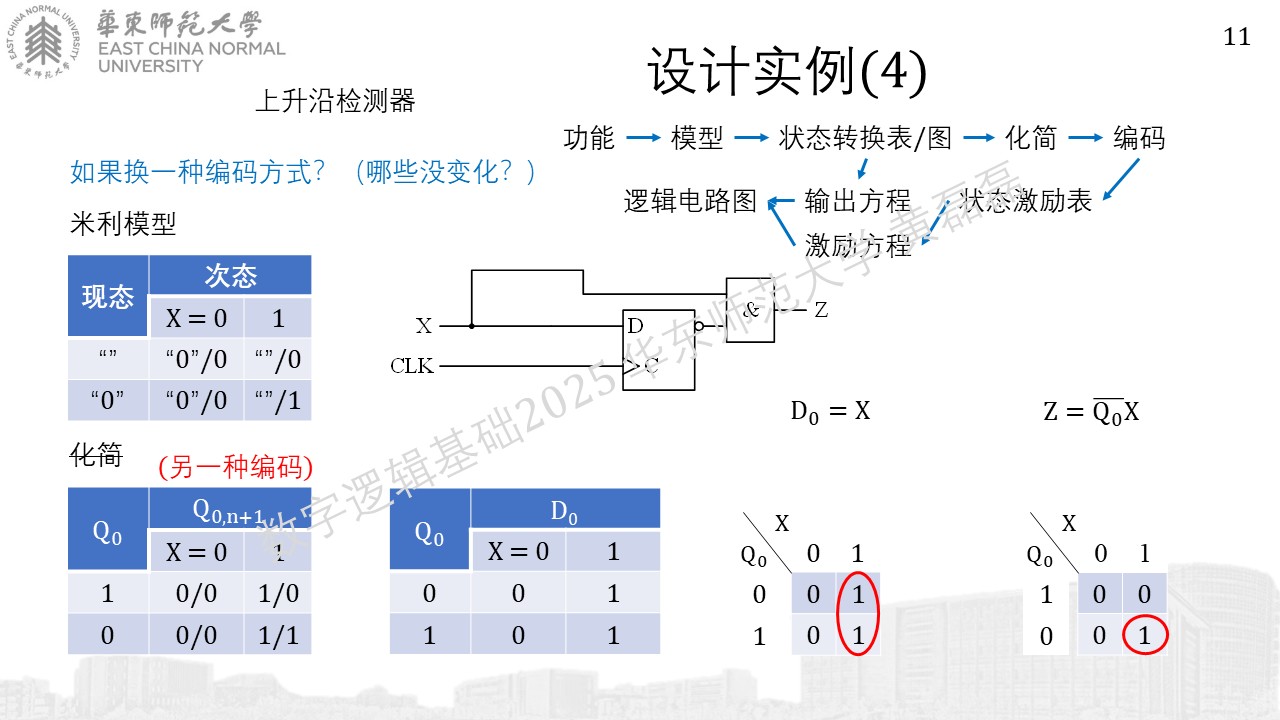

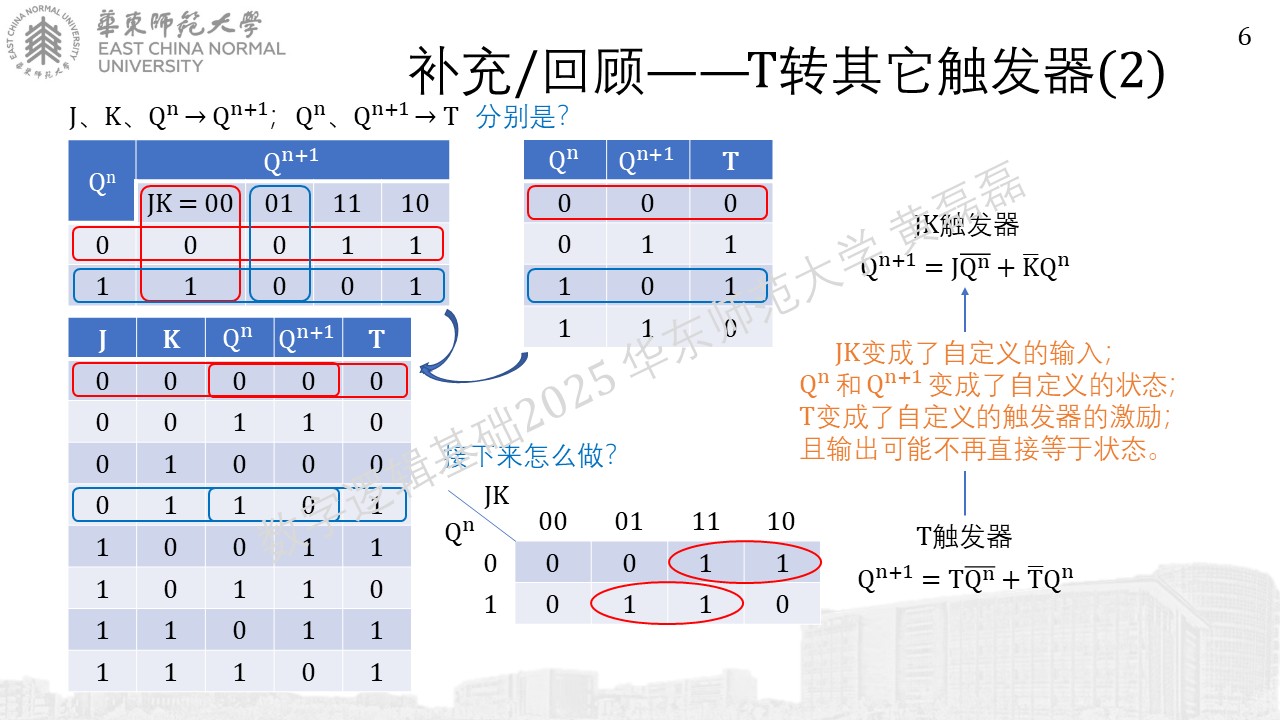

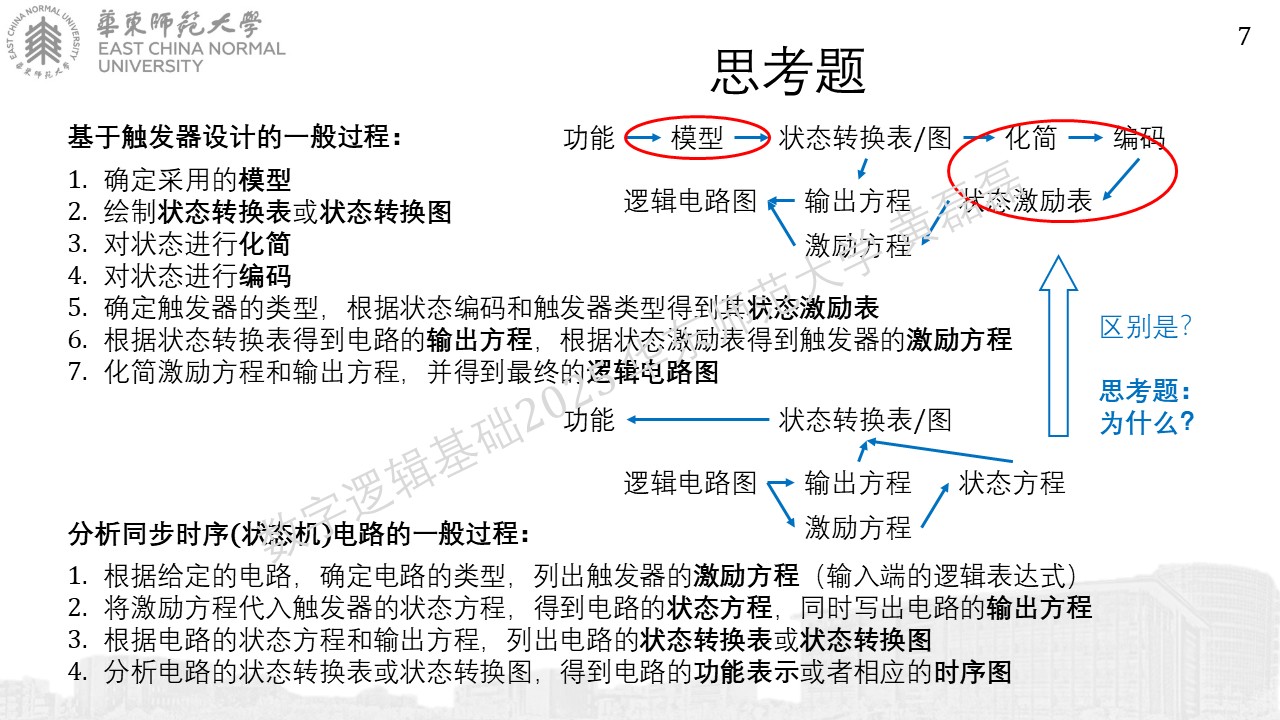

基于触发器进行设计

../_images/%E5%B9%BB%E7%81%AF%E7%89%872102.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87360.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87439.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87533.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87630.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87730.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87828.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87926.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871026.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871133.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871228.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871326.JPG

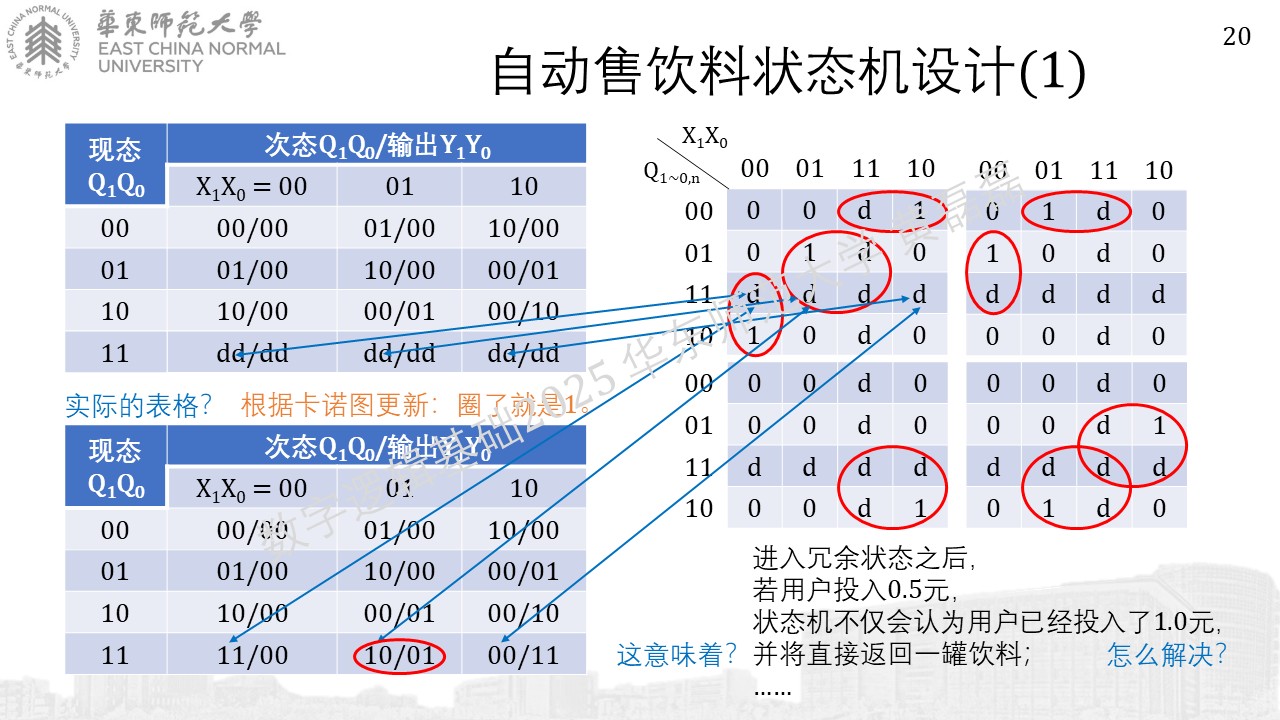

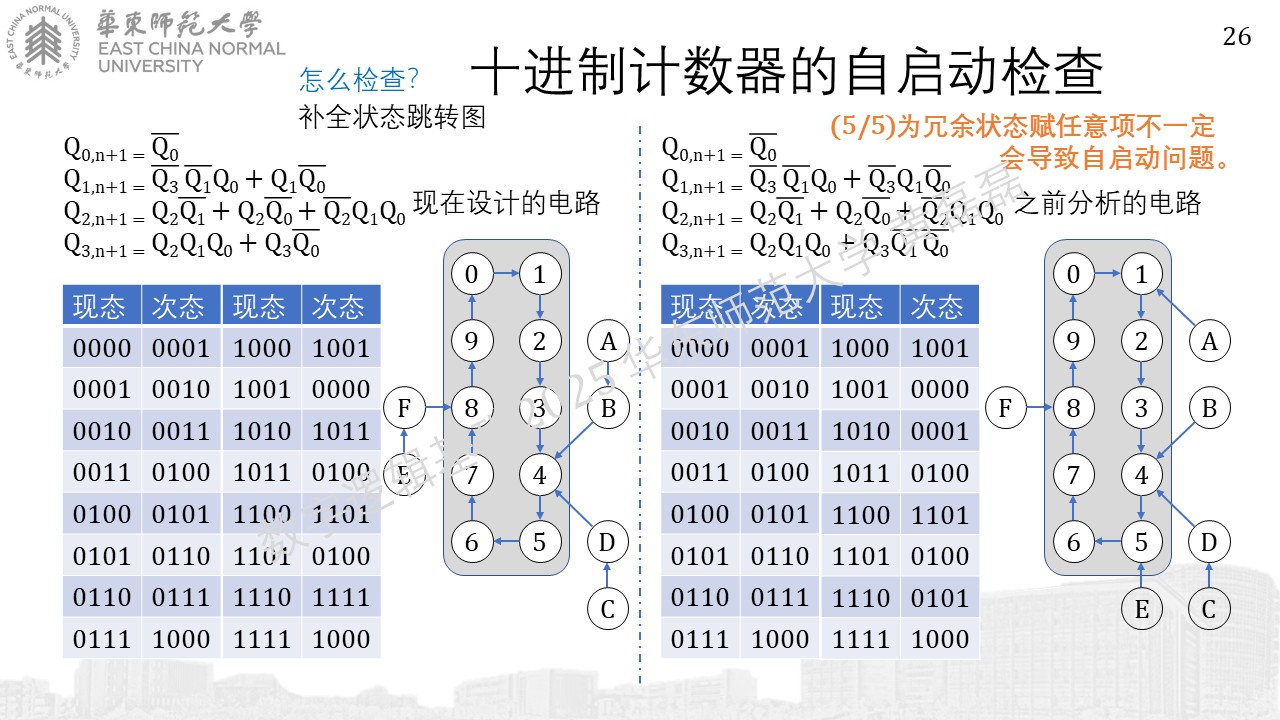

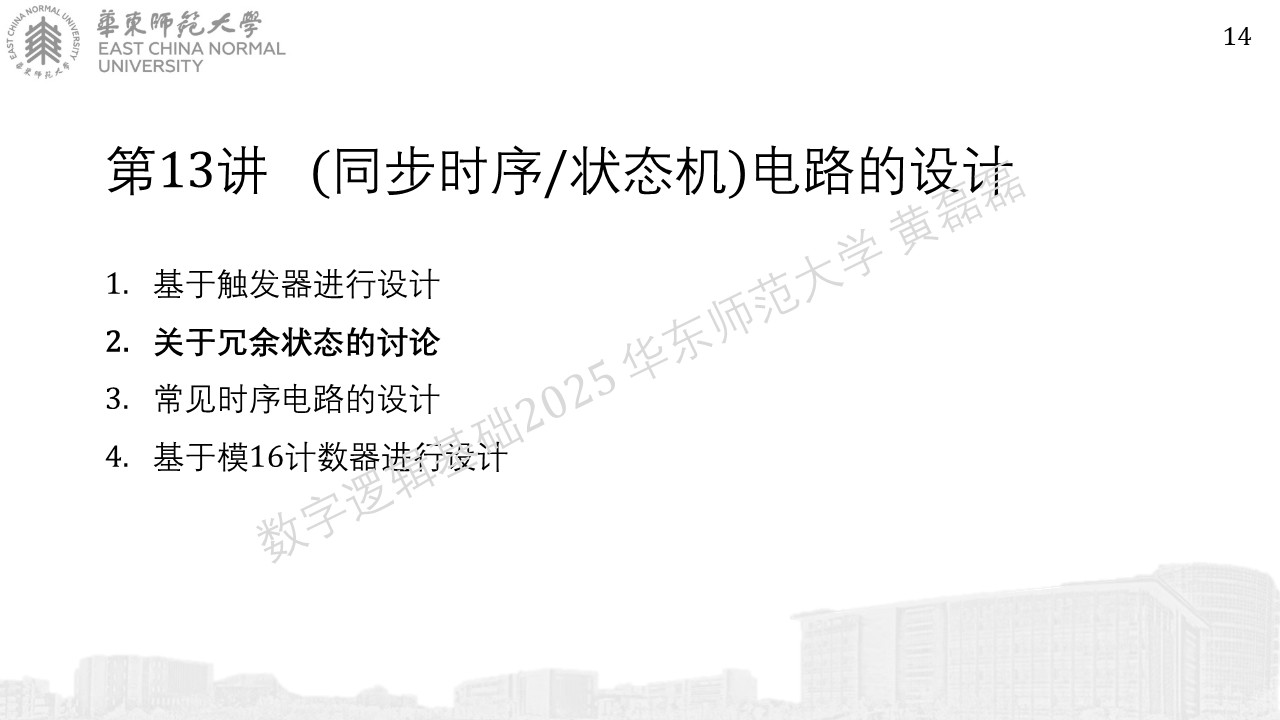

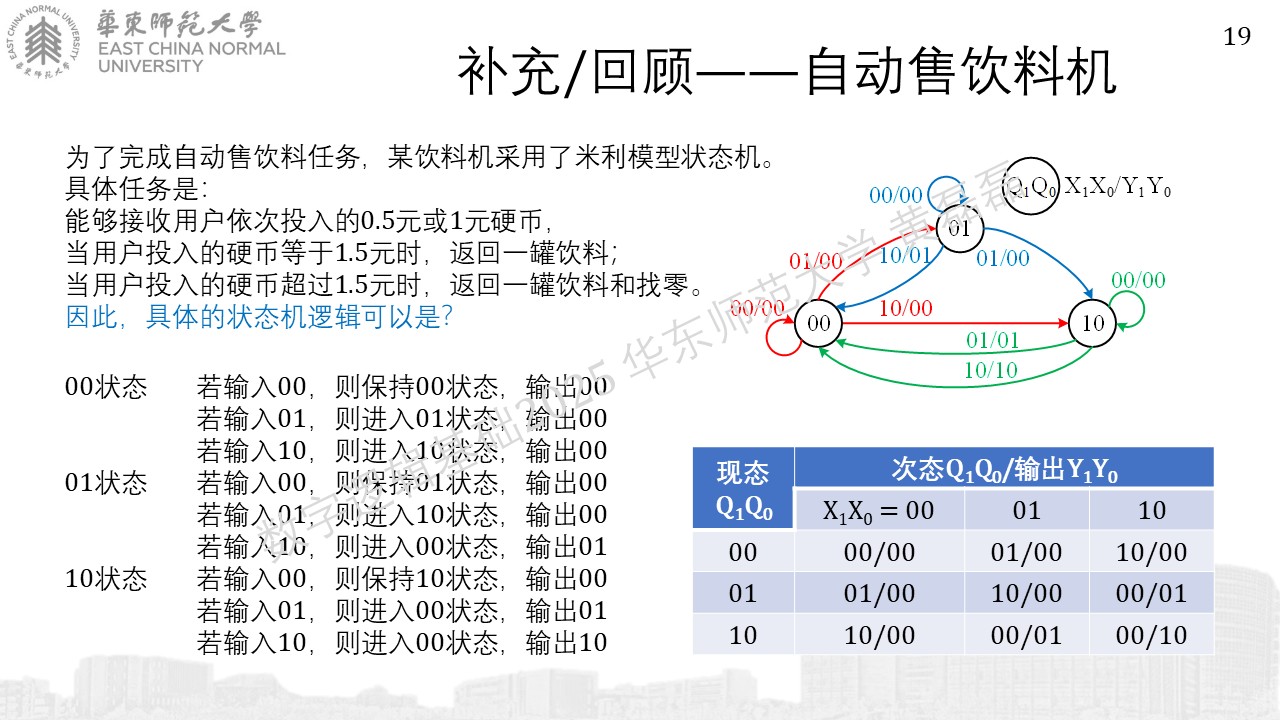

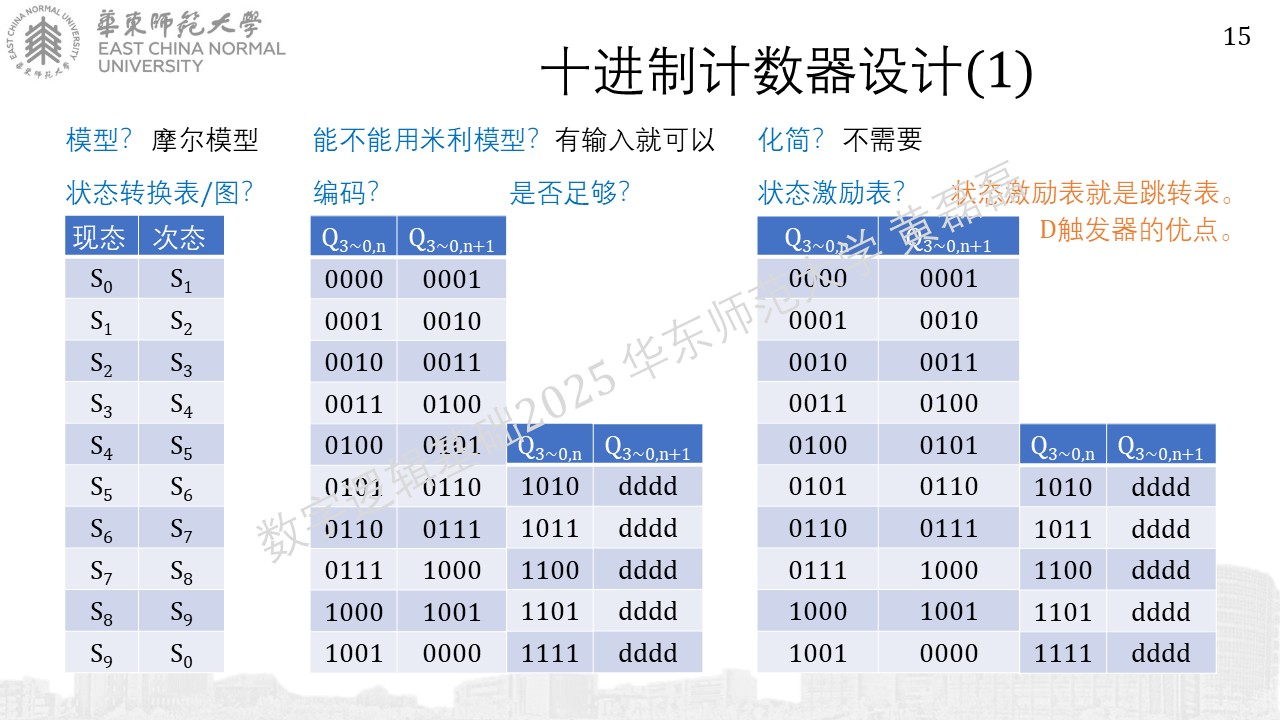

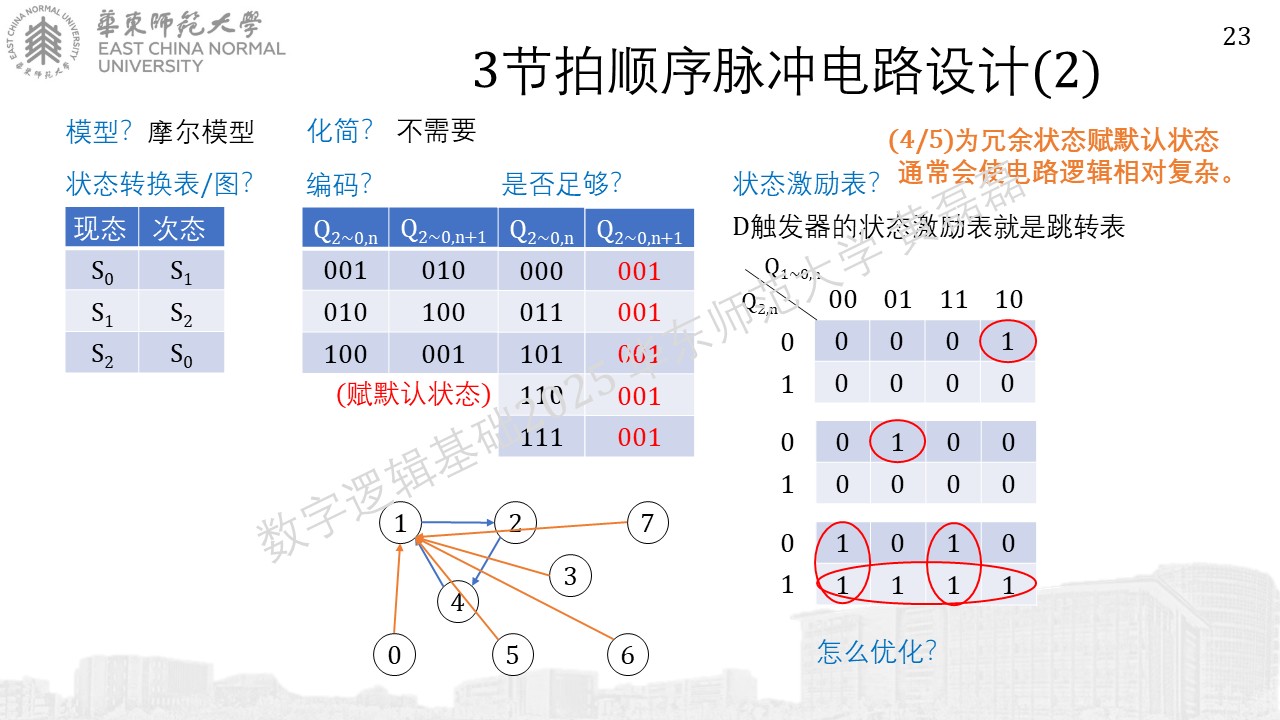

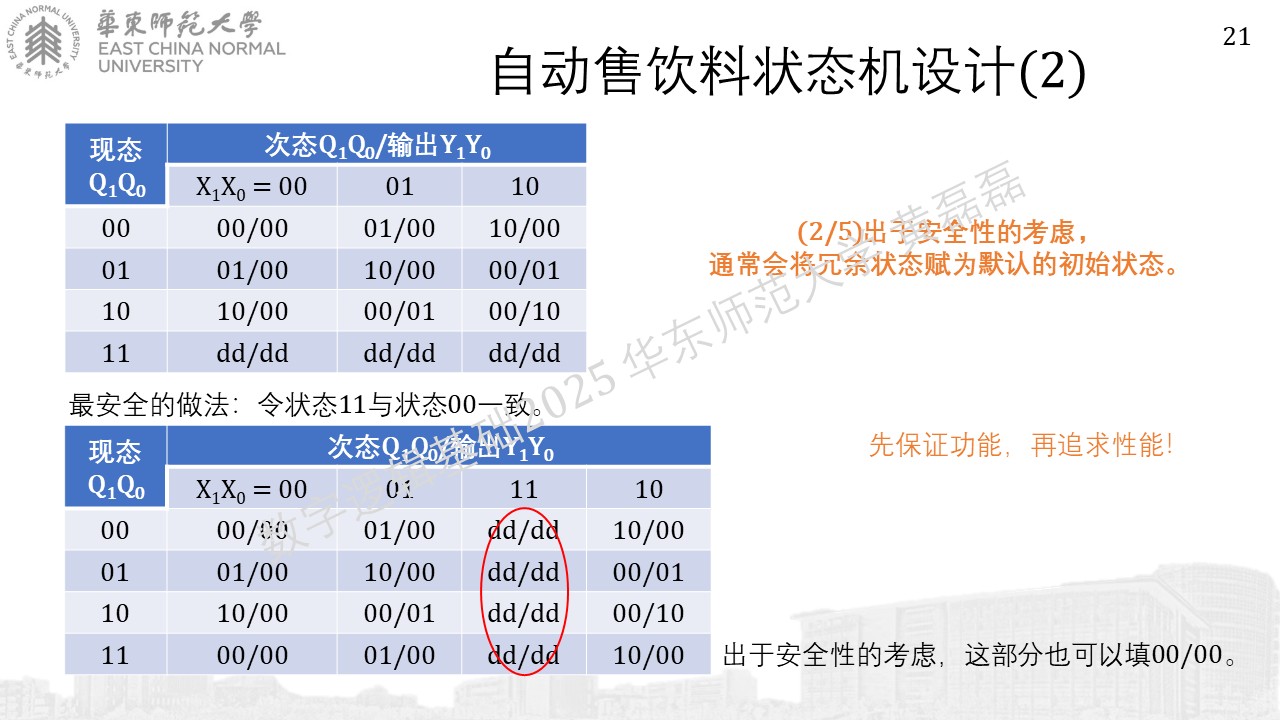

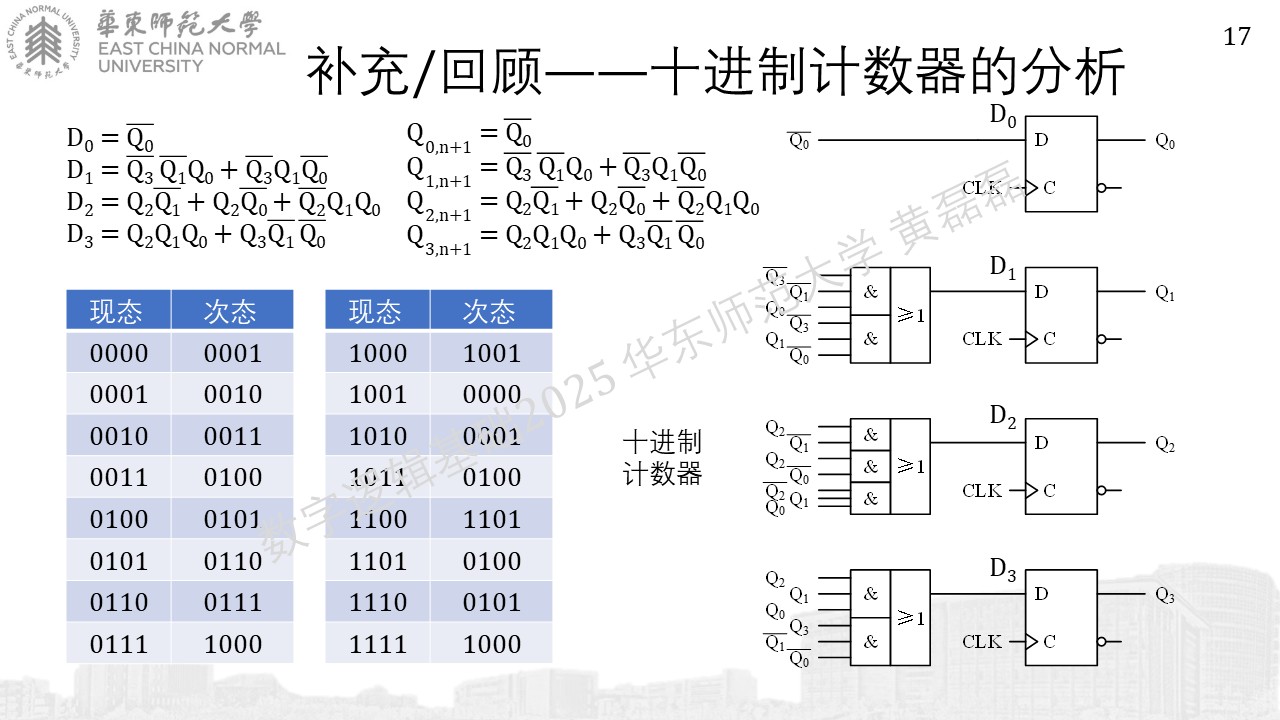

关于冗余状态的讨论

../_images/%E5%B9%BB%E7%81%AF%E7%89%871422.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871520.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871619.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871719.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871817.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871916.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872016.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872121.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872216.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872315.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872414.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872512.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872611.JPG

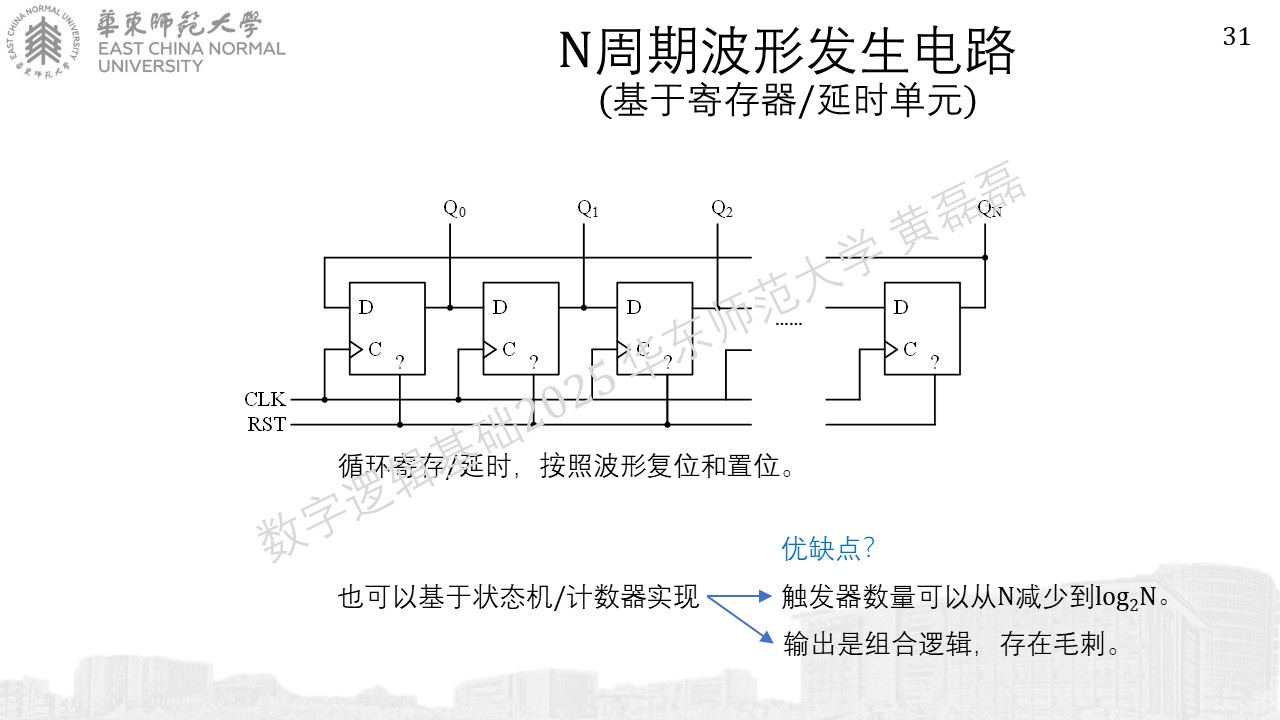

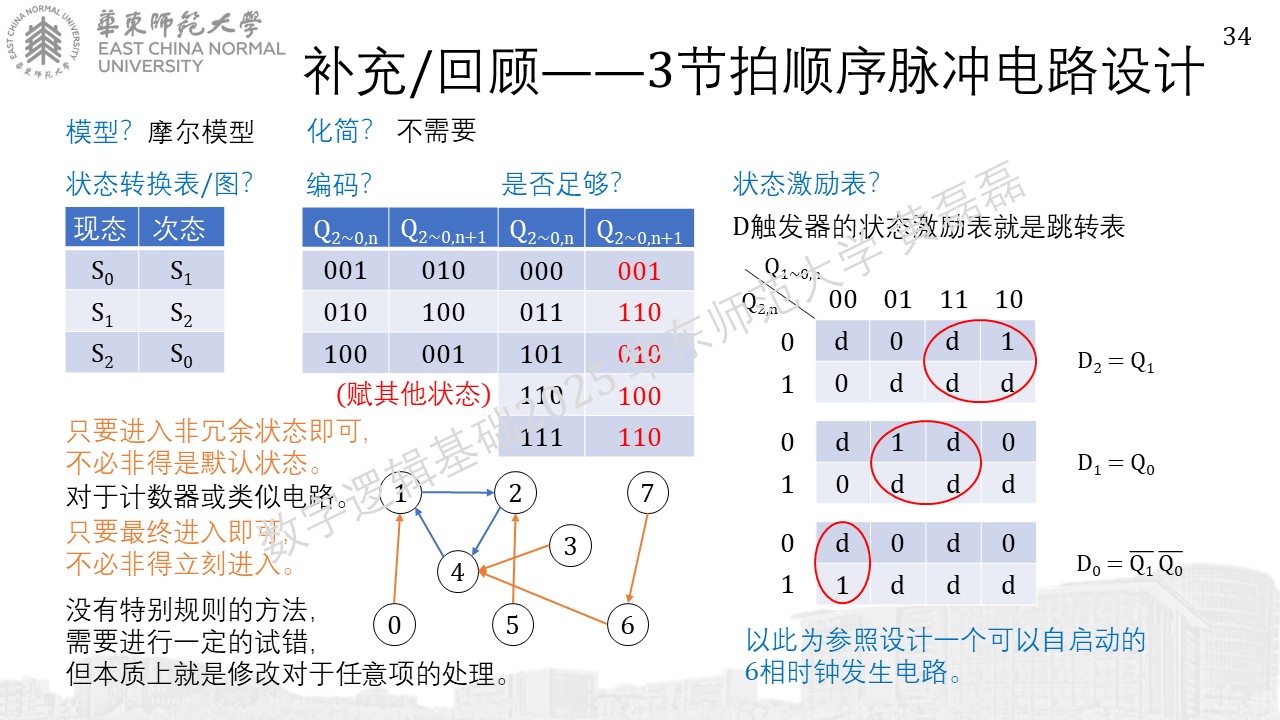

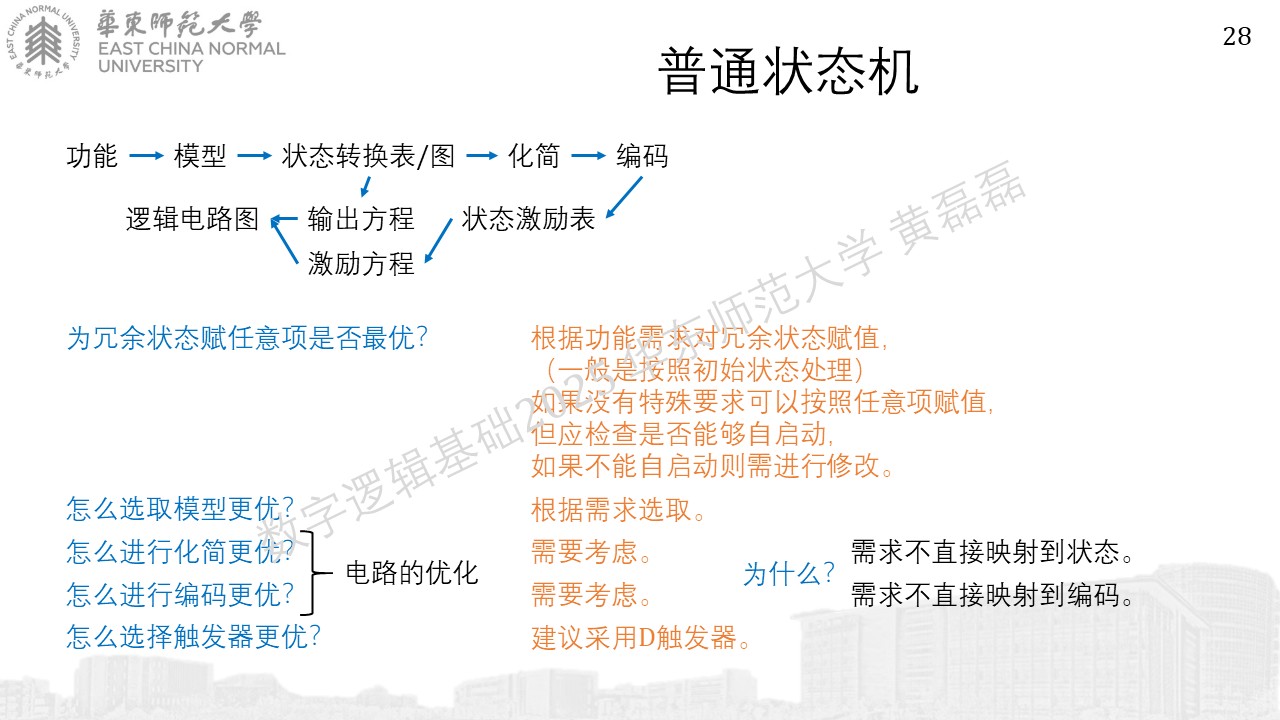

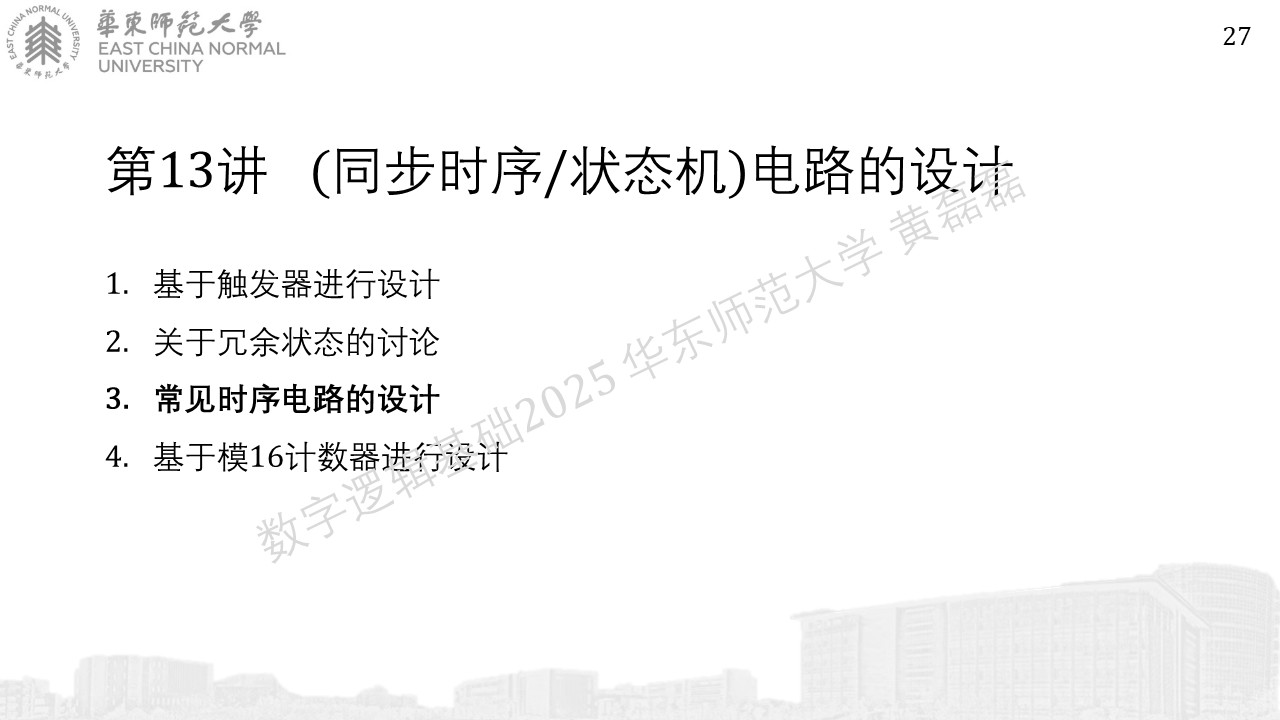

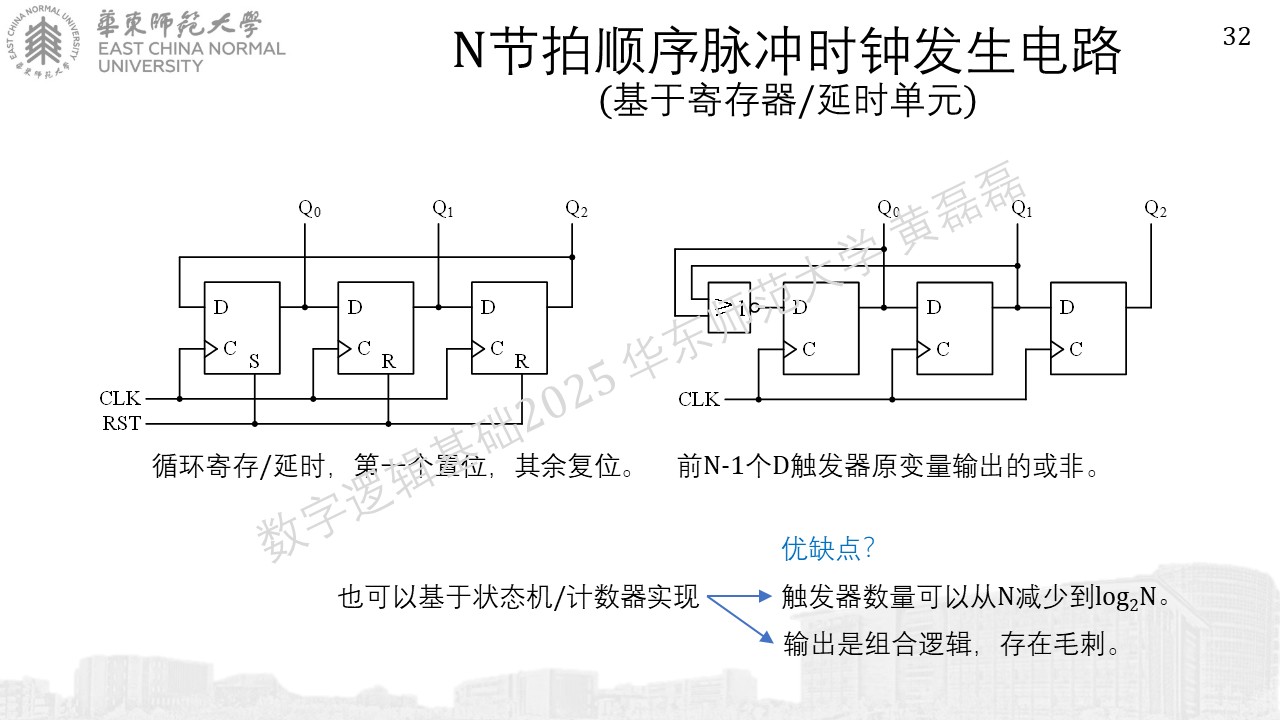

常见时序电路的设计

../_images/%E5%B9%BB%E7%81%AF%E7%89%872711.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872810.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872910.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87308.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873116.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873213.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873310.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873410.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873510.JPG

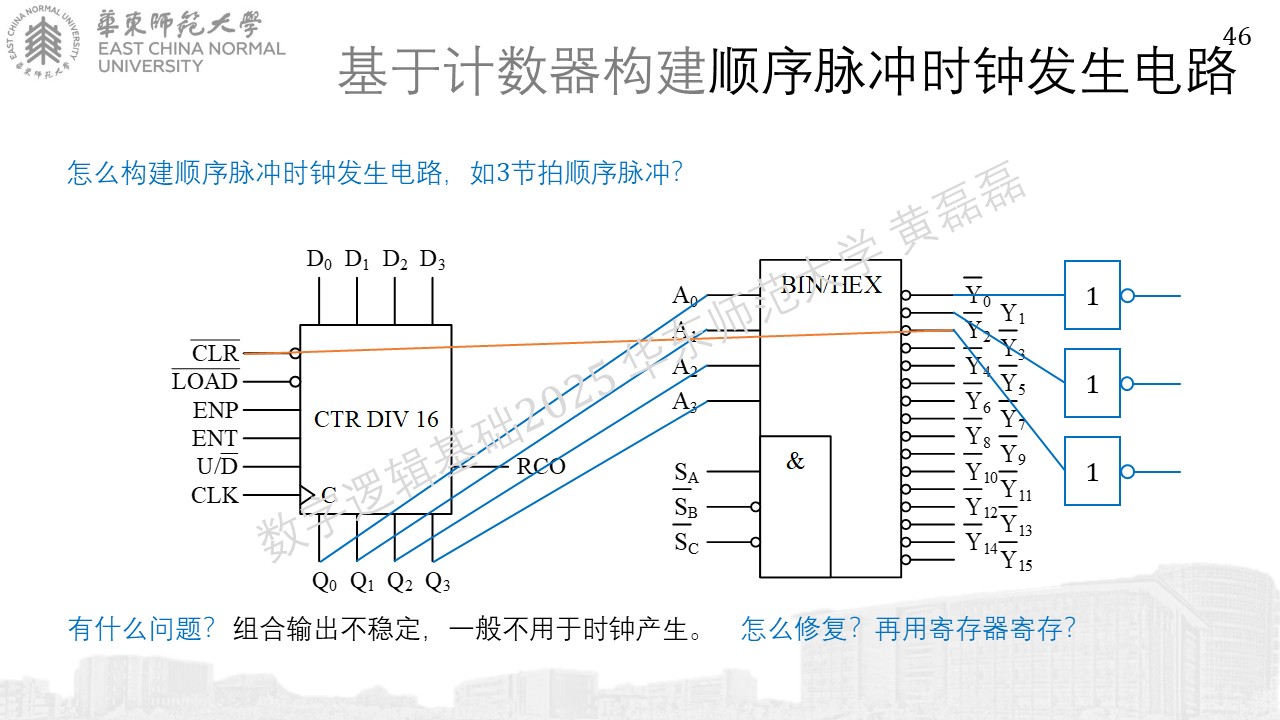

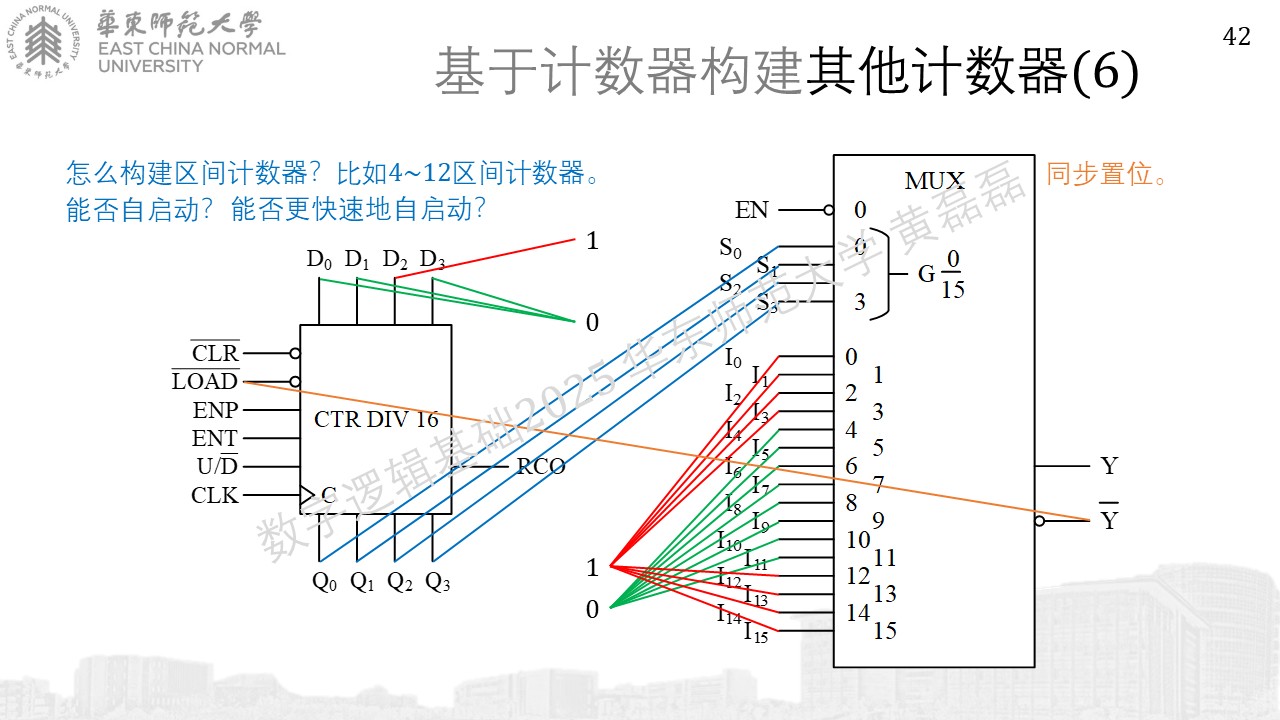

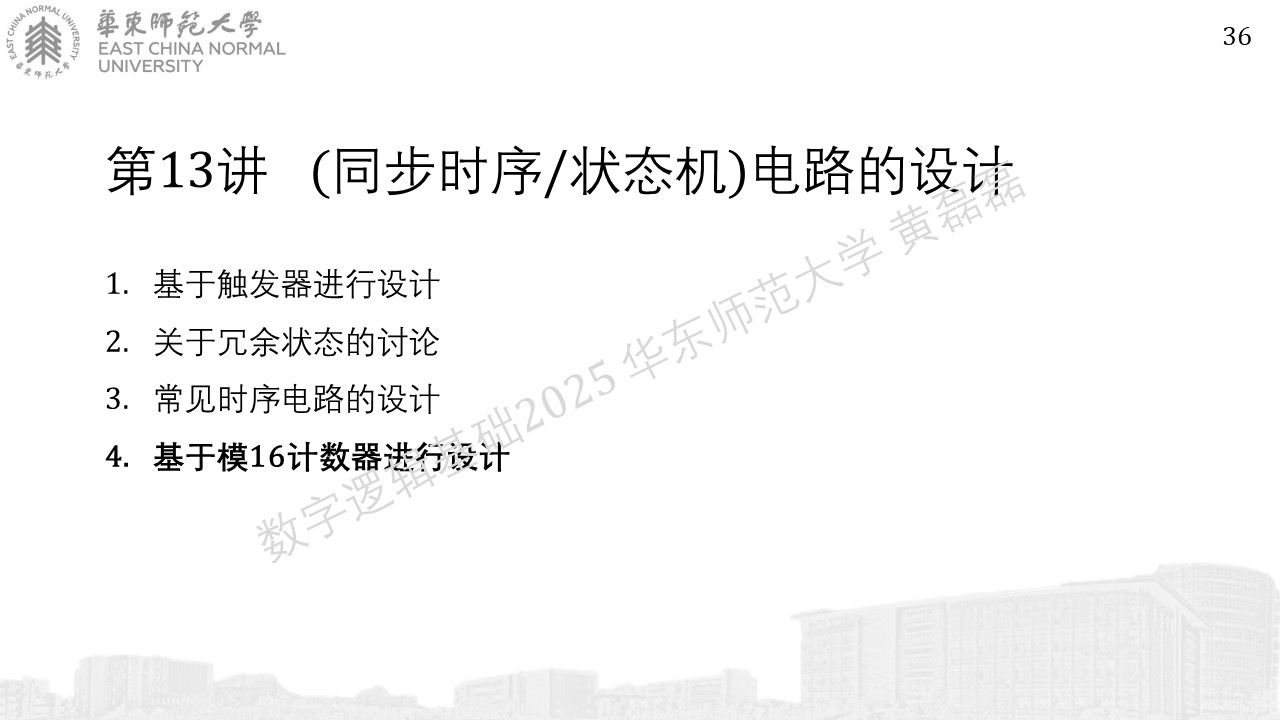

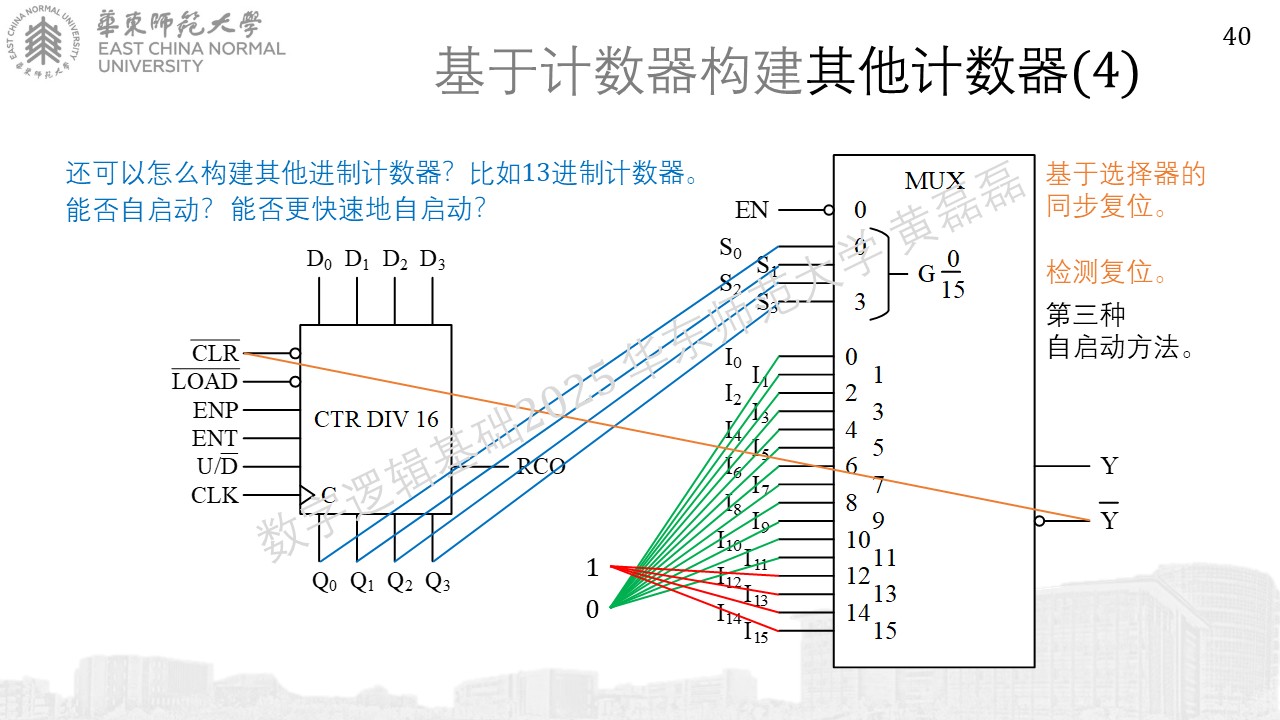

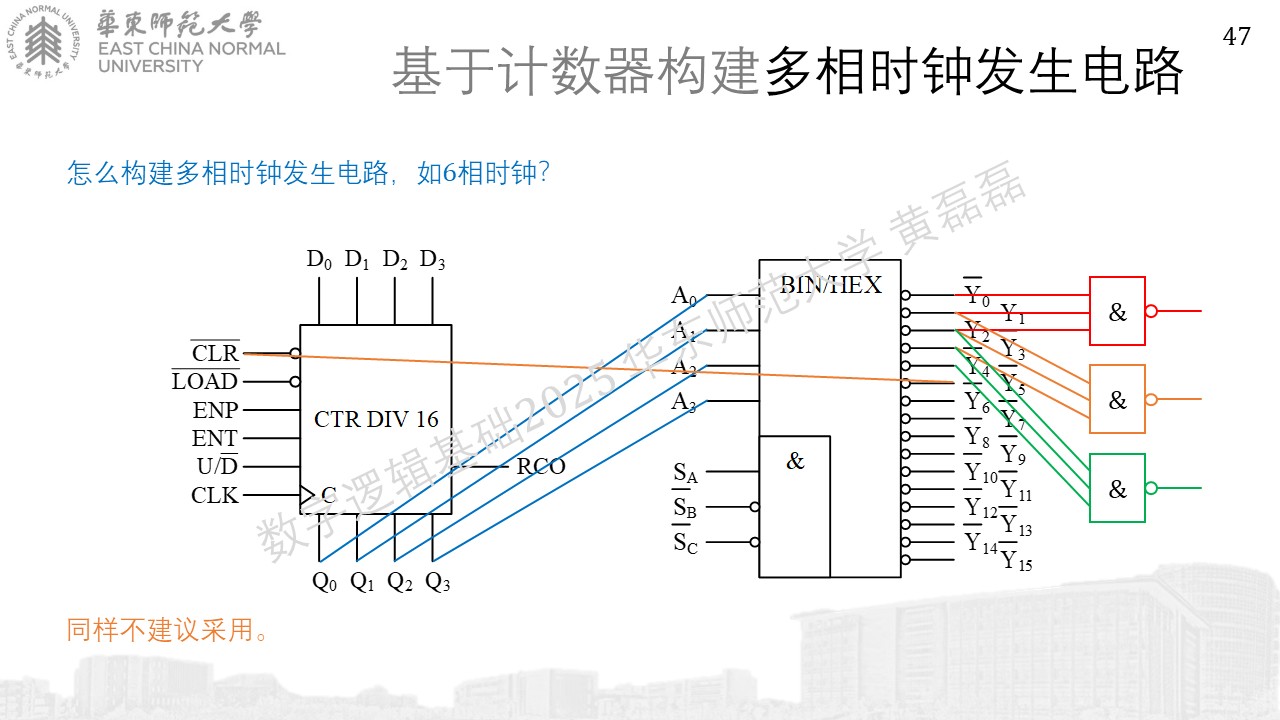

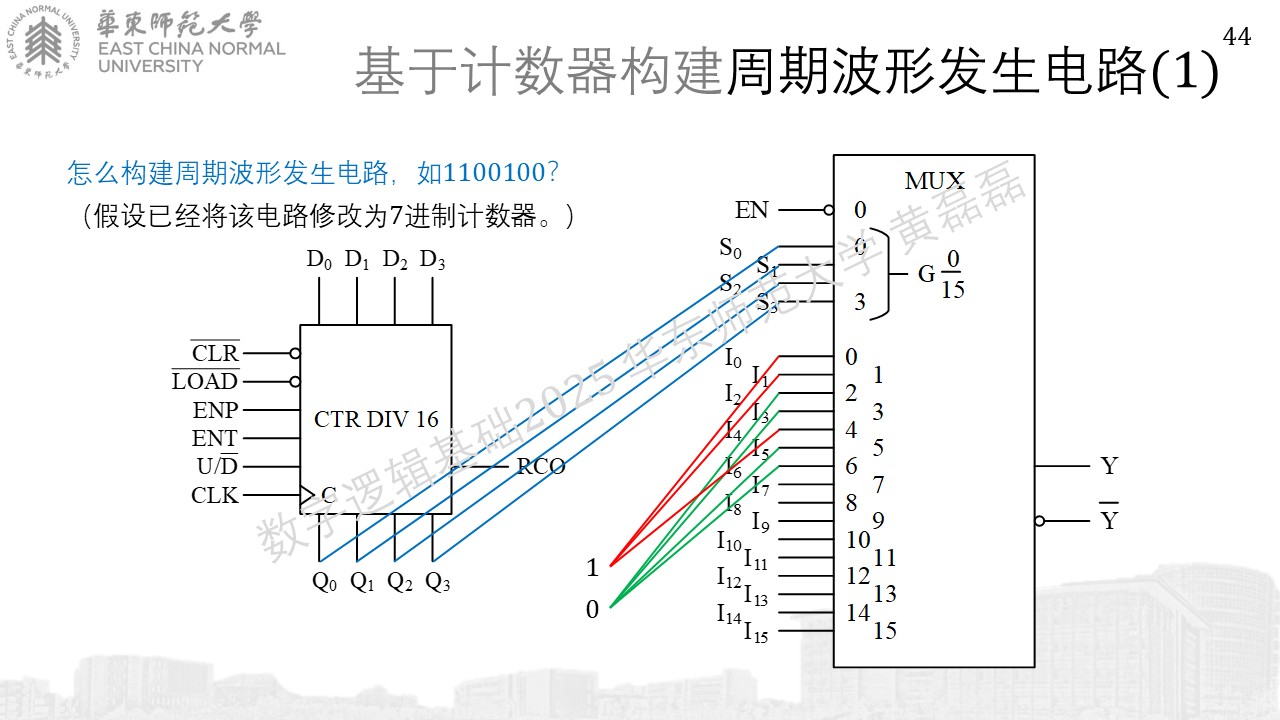

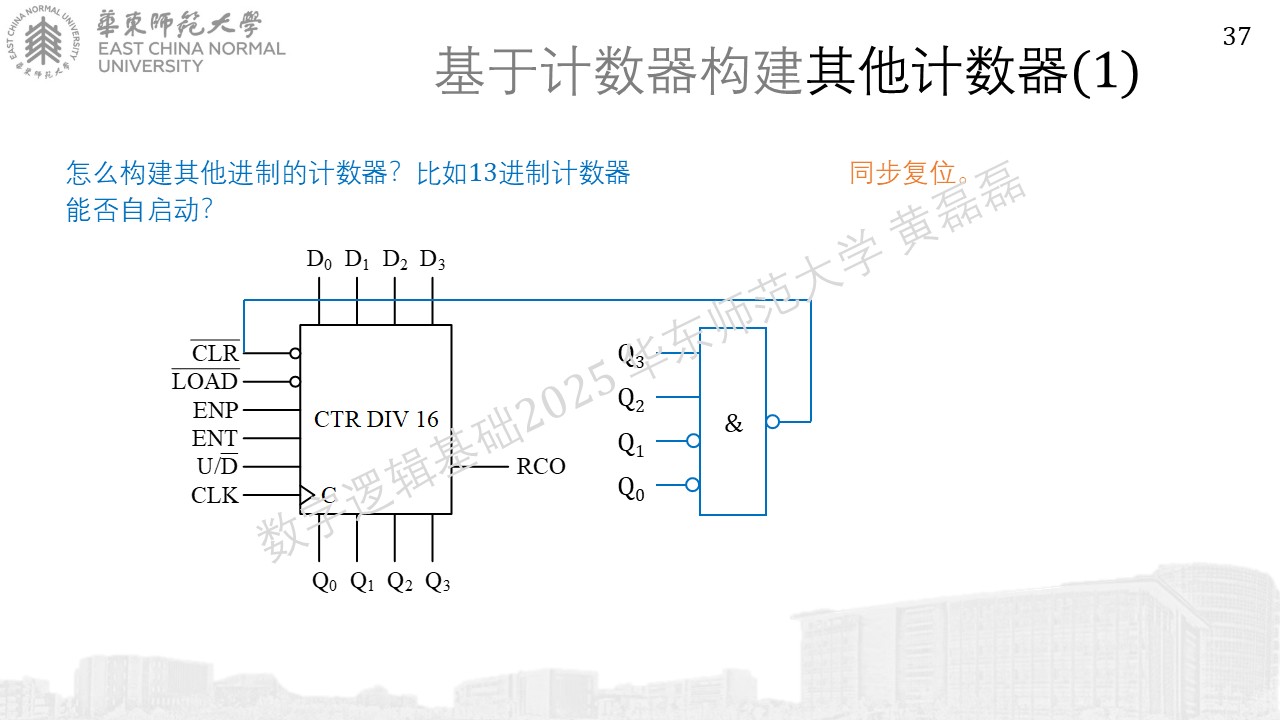

基于模16计数器进行设计

../_images/%E5%B9%BB%E7%81%AF%E7%89%87367.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87377.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87385.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87394.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87403.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874112.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874210.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874310.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87443.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87453.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87463.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87473.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87483.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87493.JPG
