补充C - 其他加法器和乘法器

../_images/%E5%B9%BB%E7%81%AF%E7%89%87160.JPG

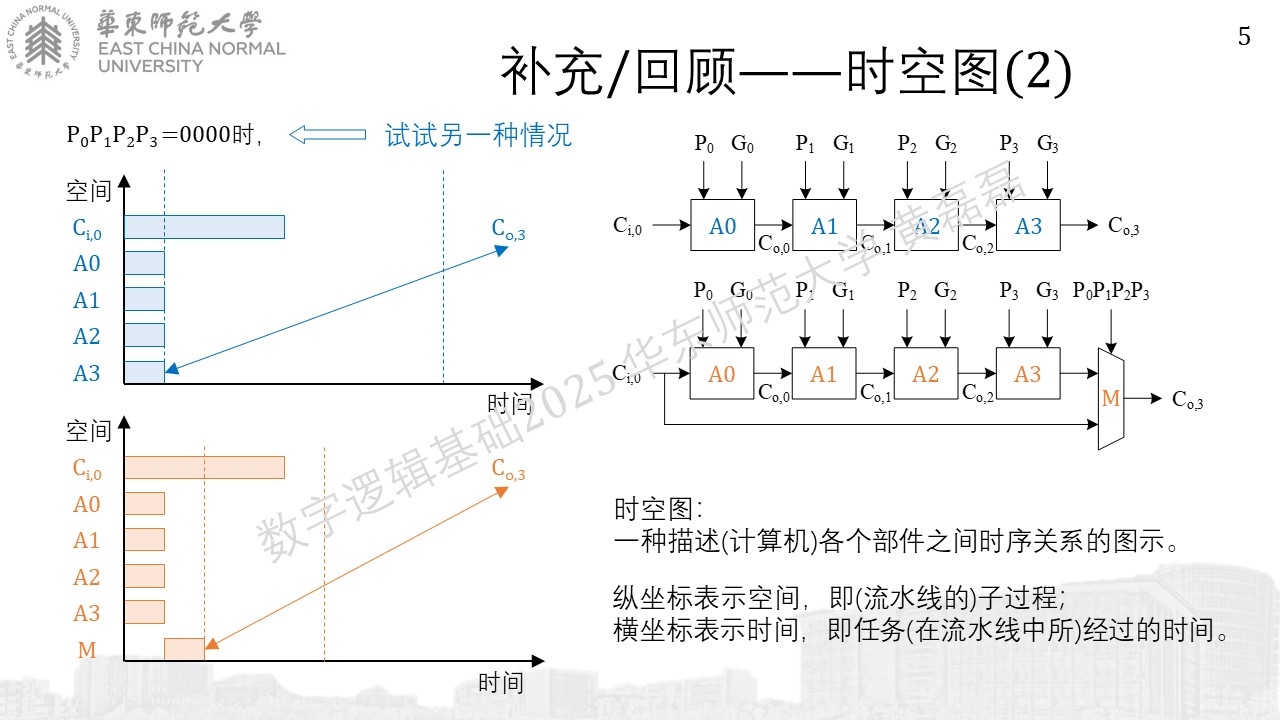

加（补充部分）

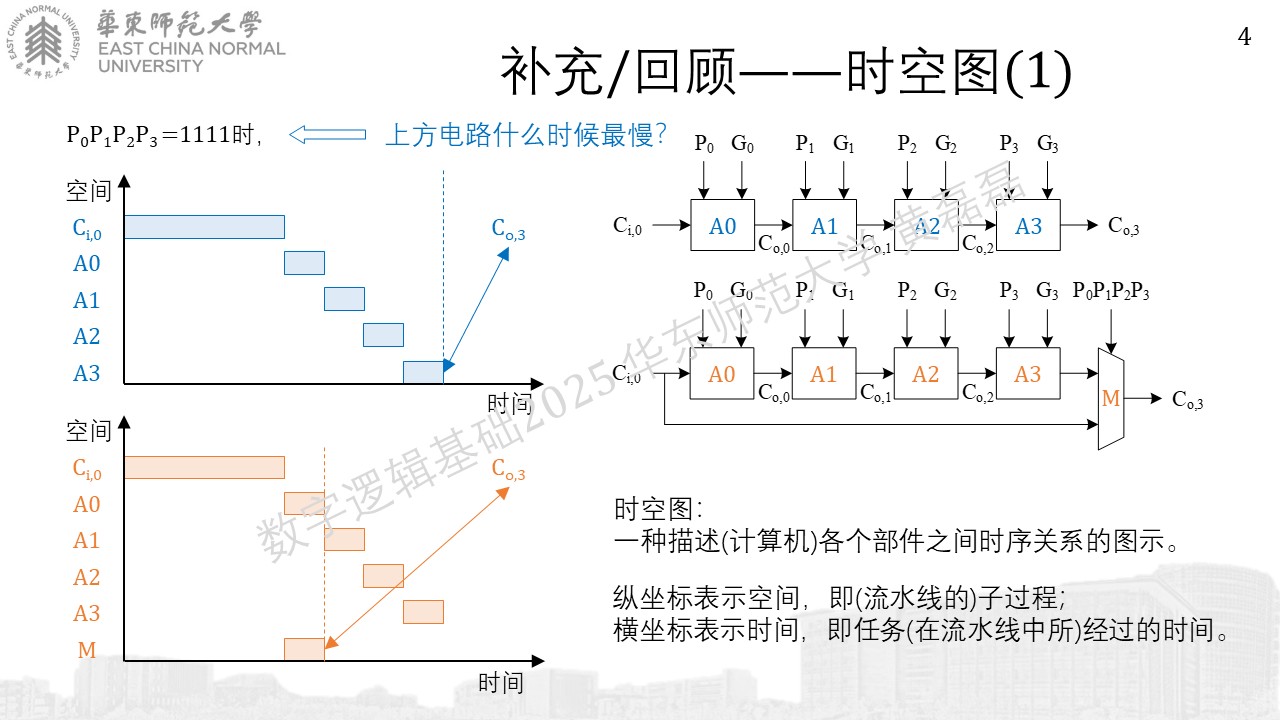

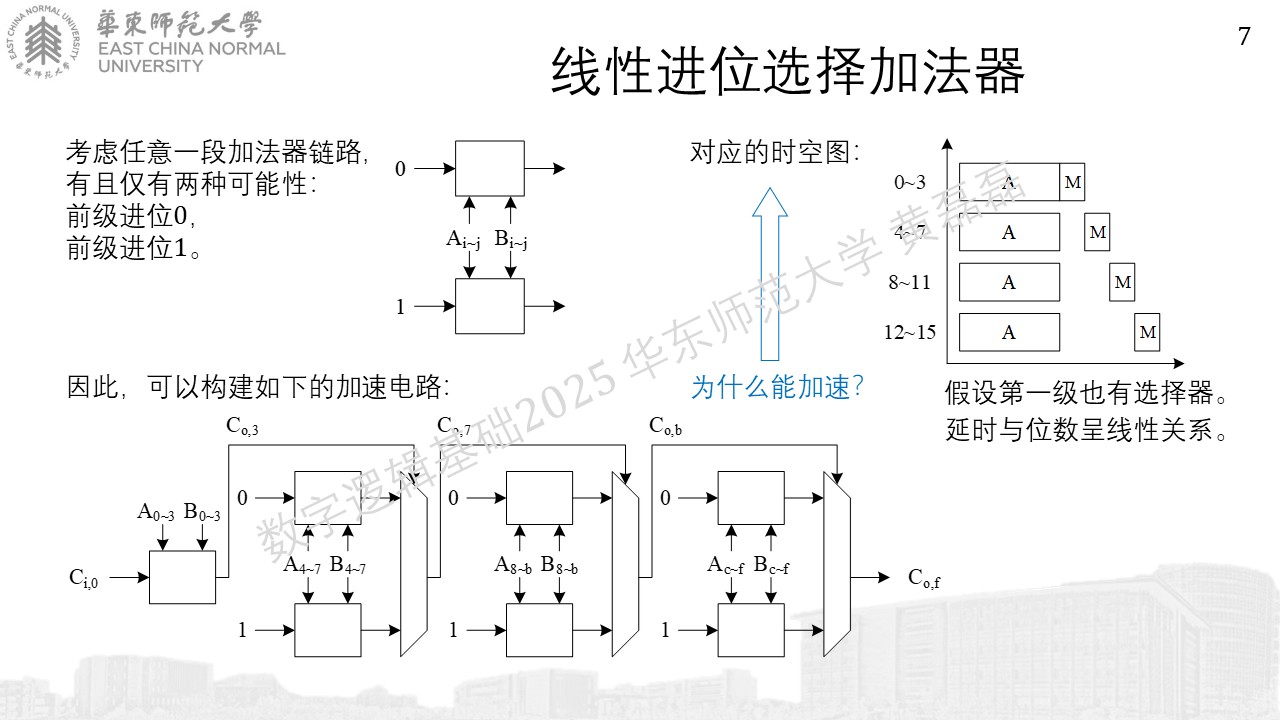

../_images/%E5%B9%BB%E7%81%AF%E7%89%87228.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87324.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87420.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87516.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87614.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87714.JPG

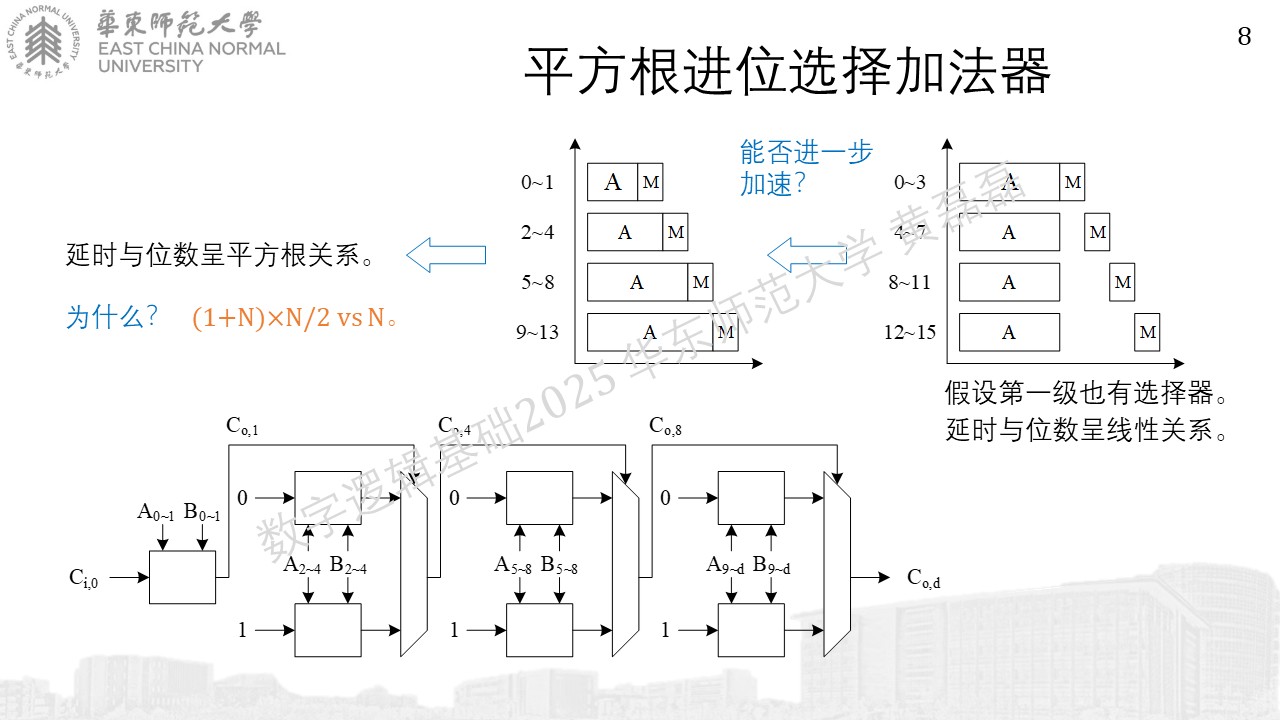

previous version:

../_images/%E5%B9%BB%E7%81%AF%E7%89%878_old.JPG

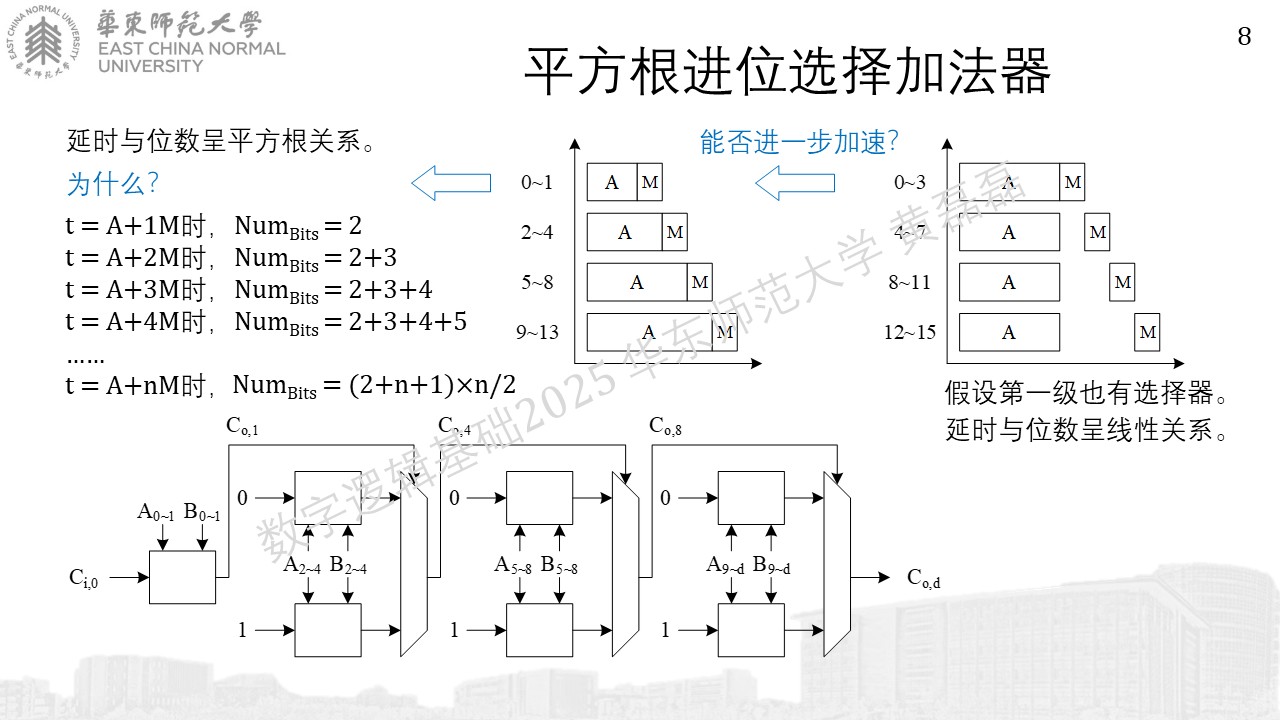

current version:

../_images/%E5%B9%BB%E7%81%AF%E7%89%87814.JPG

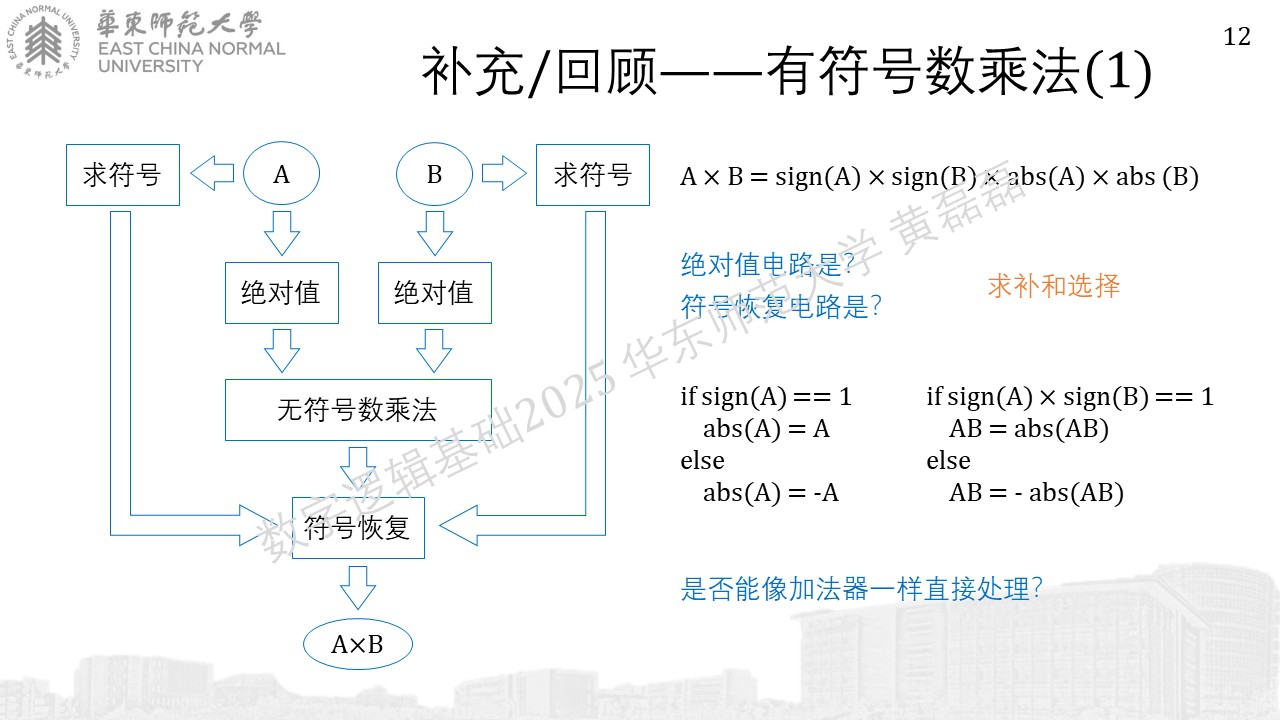

乘（补充部分）

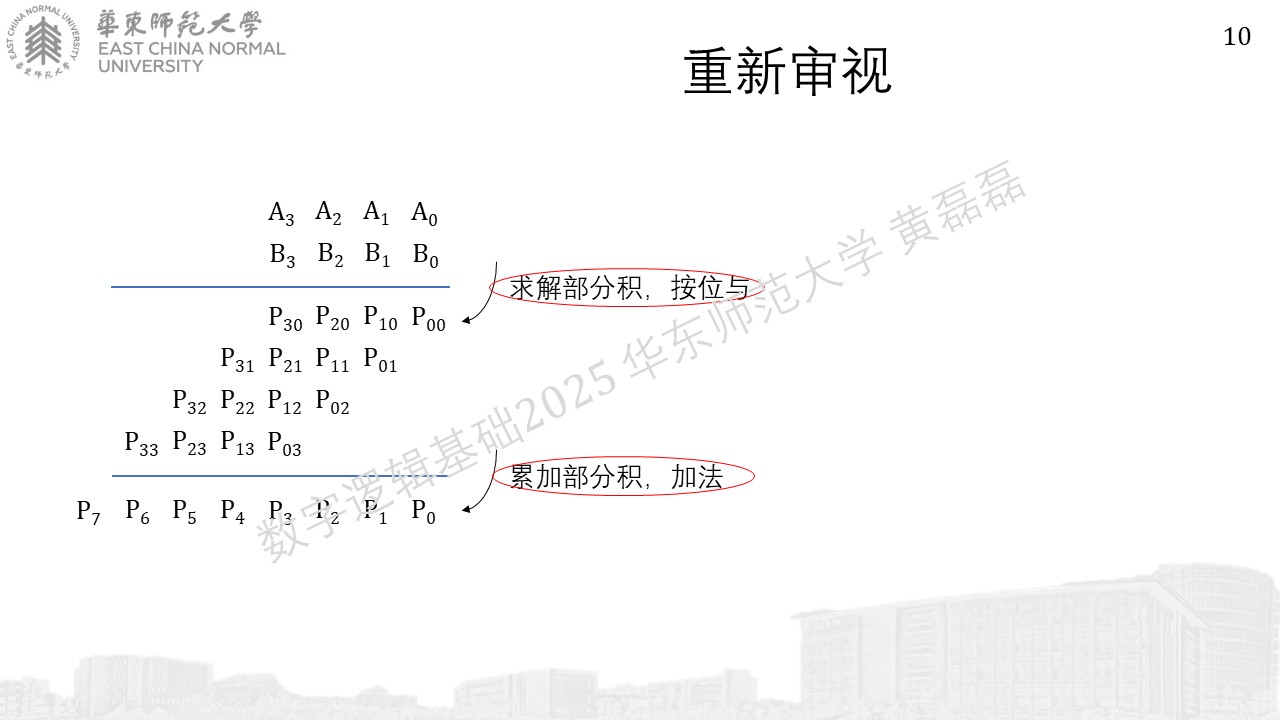

../_images/%E5%B9%BB%E7%81%AF%E7%89%87913.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871013.JPG

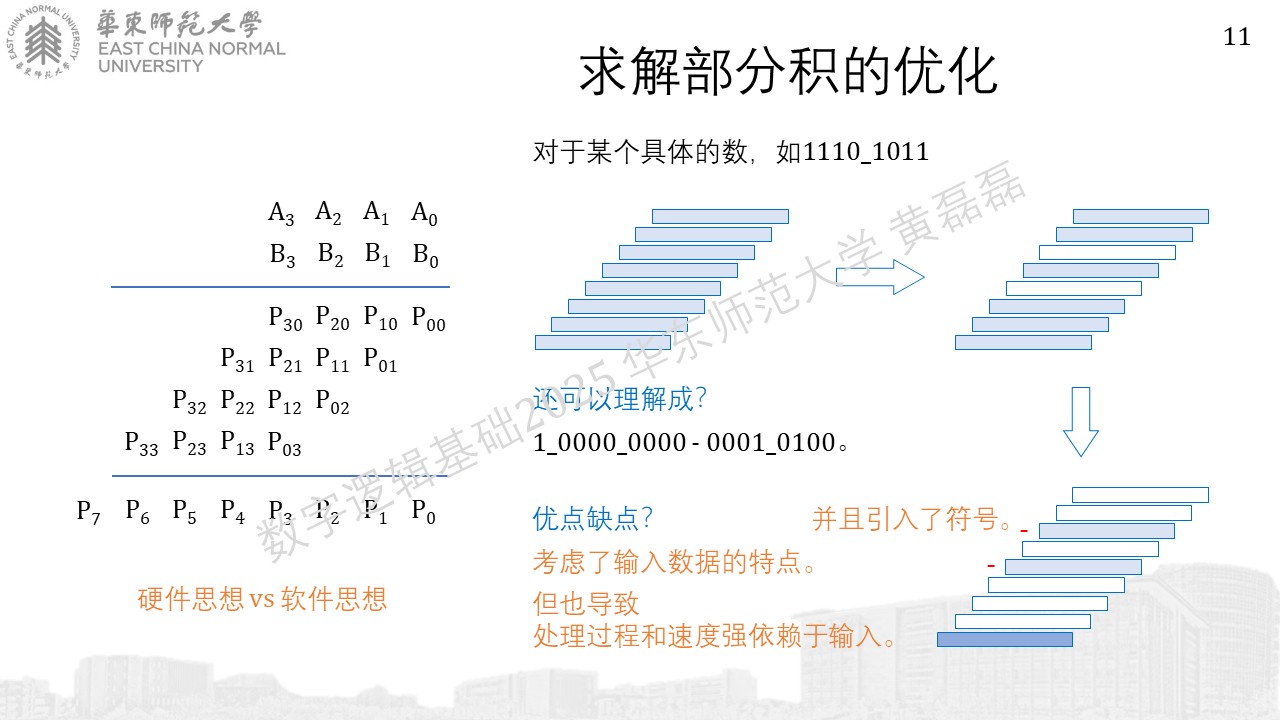

previous version:

../_images/%E5%B9%BB%E7%81%AF%E7%89%8711_old1.JPG

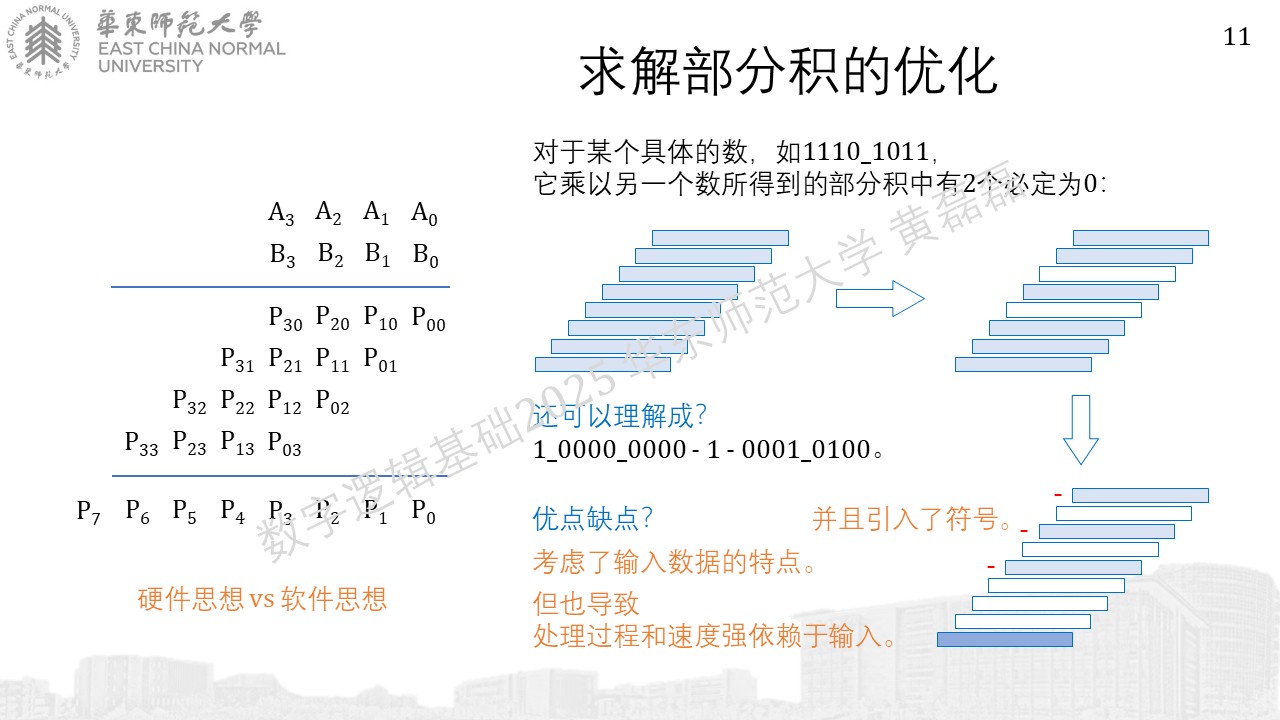

current version:

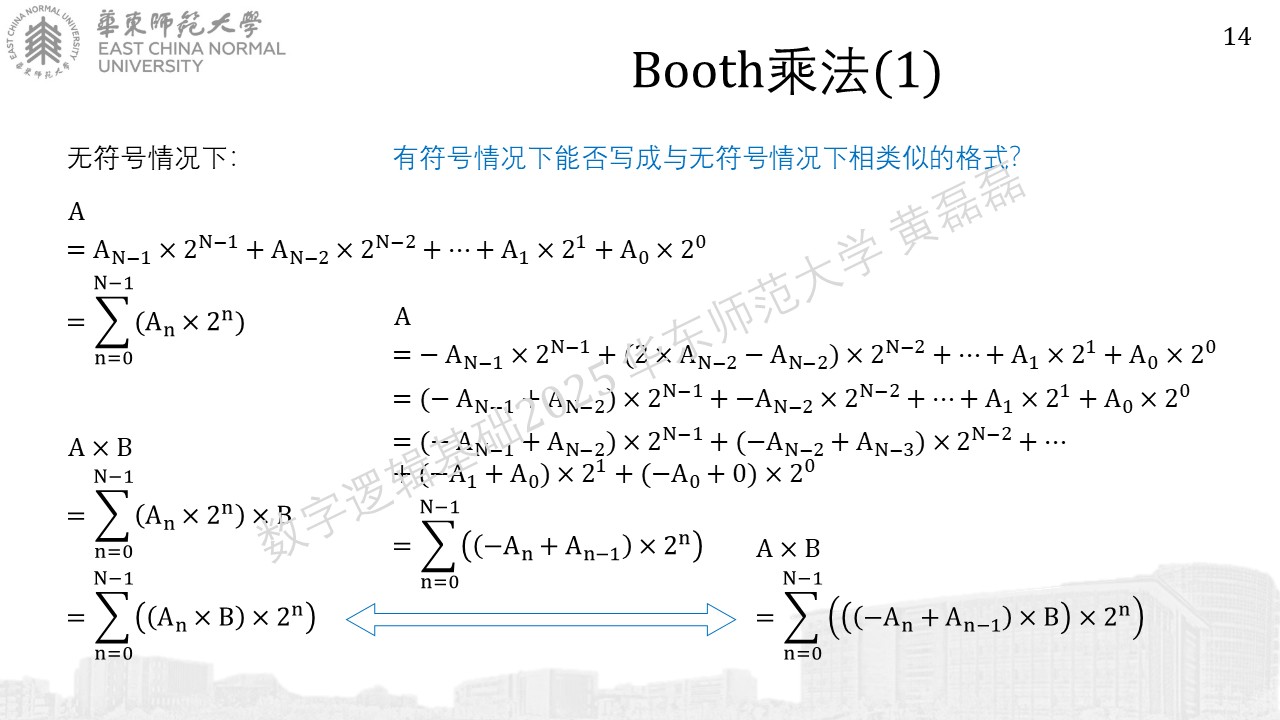

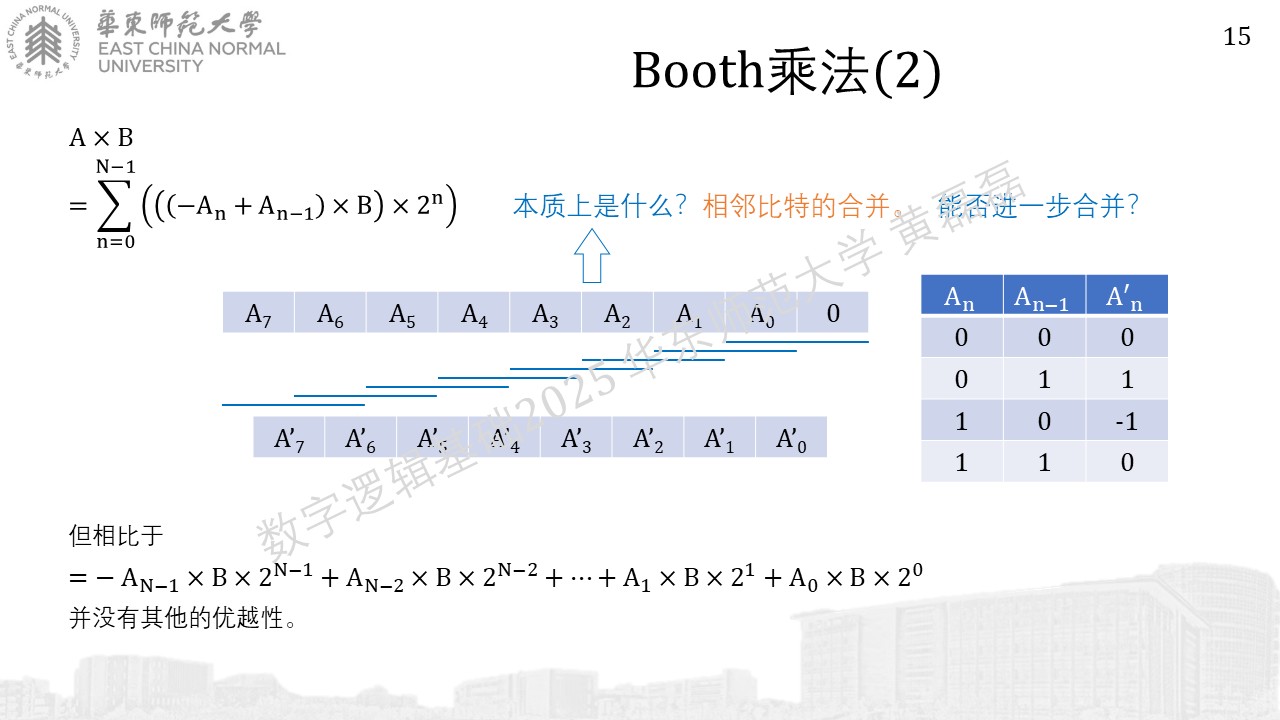

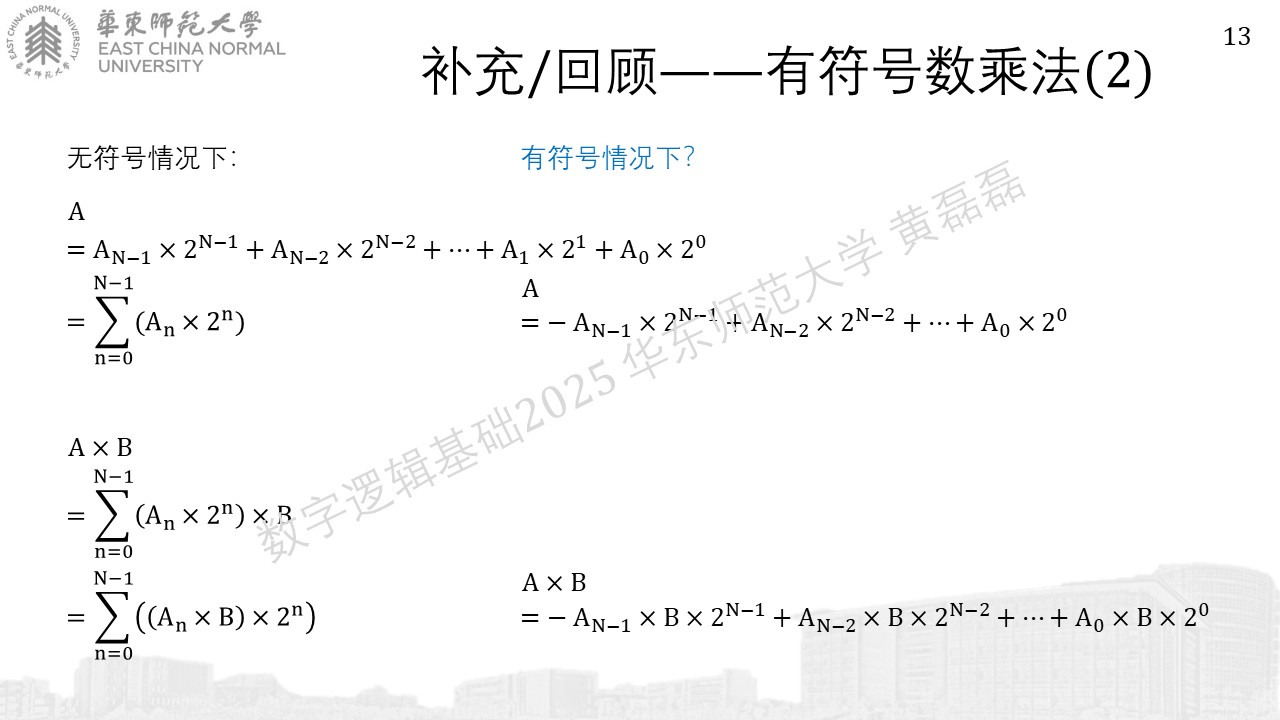

../_images/%E5%B9%BB%E7%81%AF%E7%89%871117.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871215.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871314.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871412.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871510.JPG

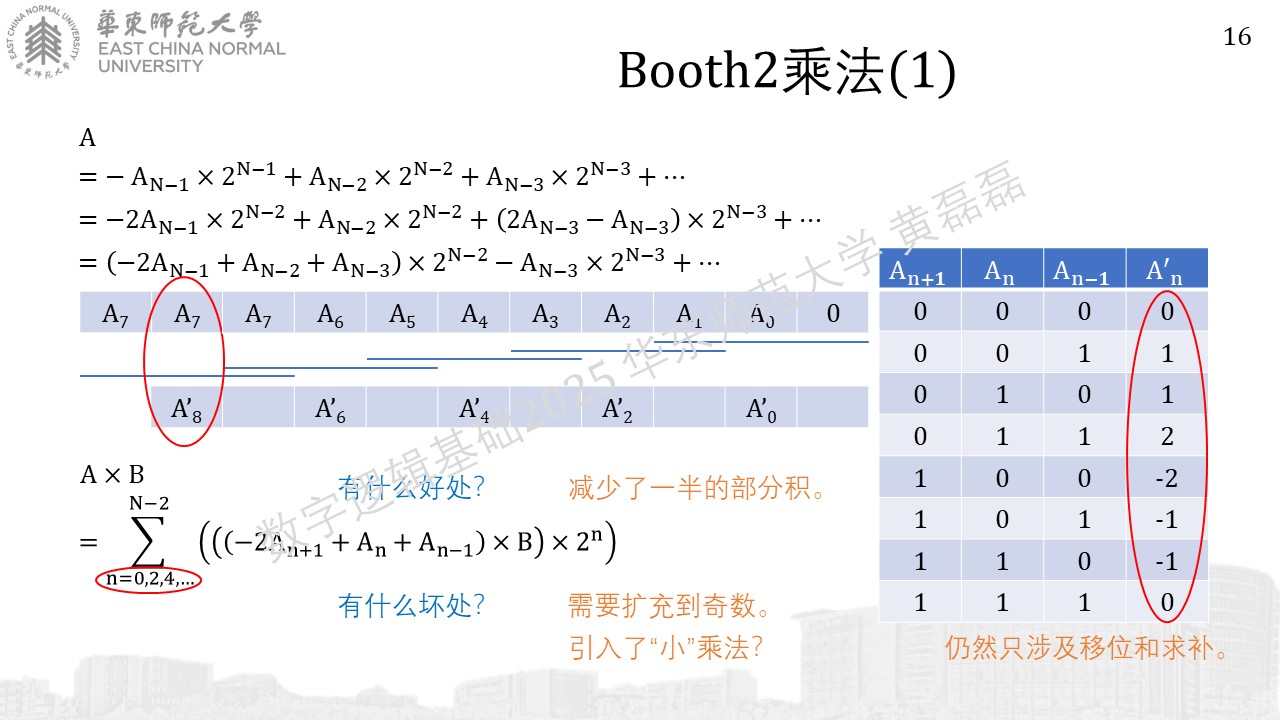

previous version:

../_images/%E5%B9%BB%E7%81%AF%E7%89%8716_old1.JPG

current version:

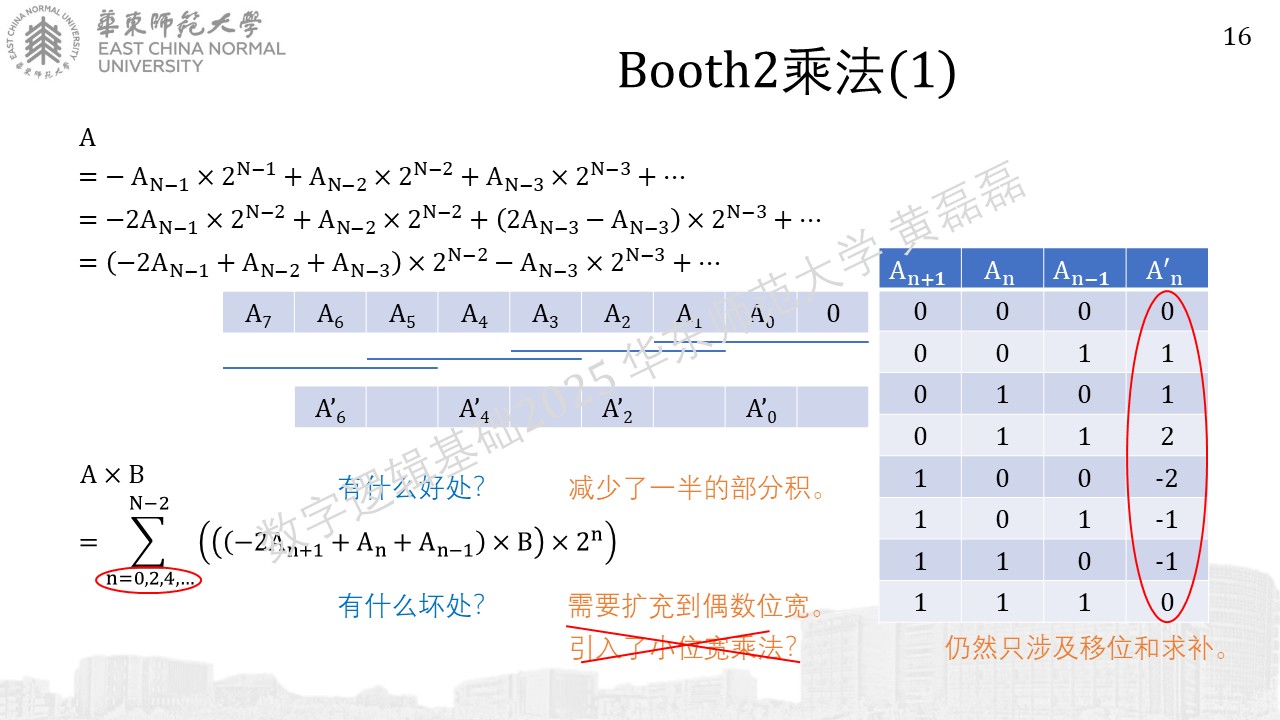

../_images/%E5%B9%BB%E7%81%AF%E7%89%871610.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871710.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87188.JPG

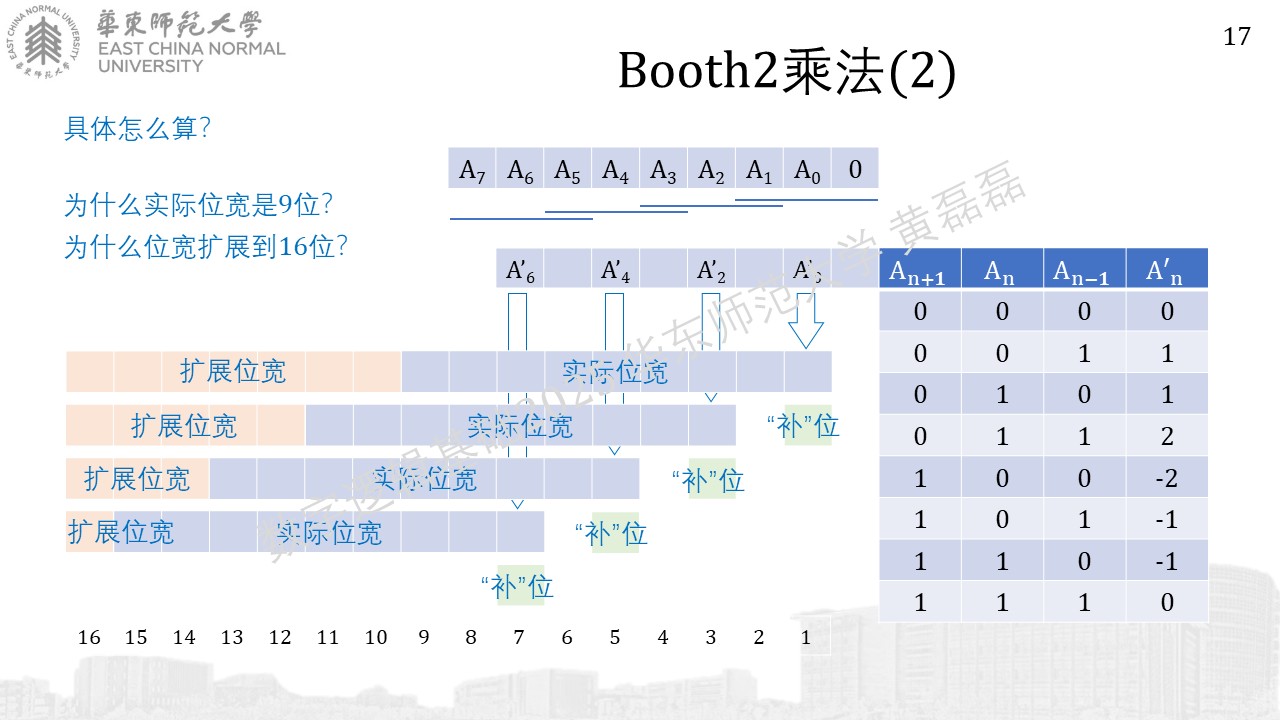

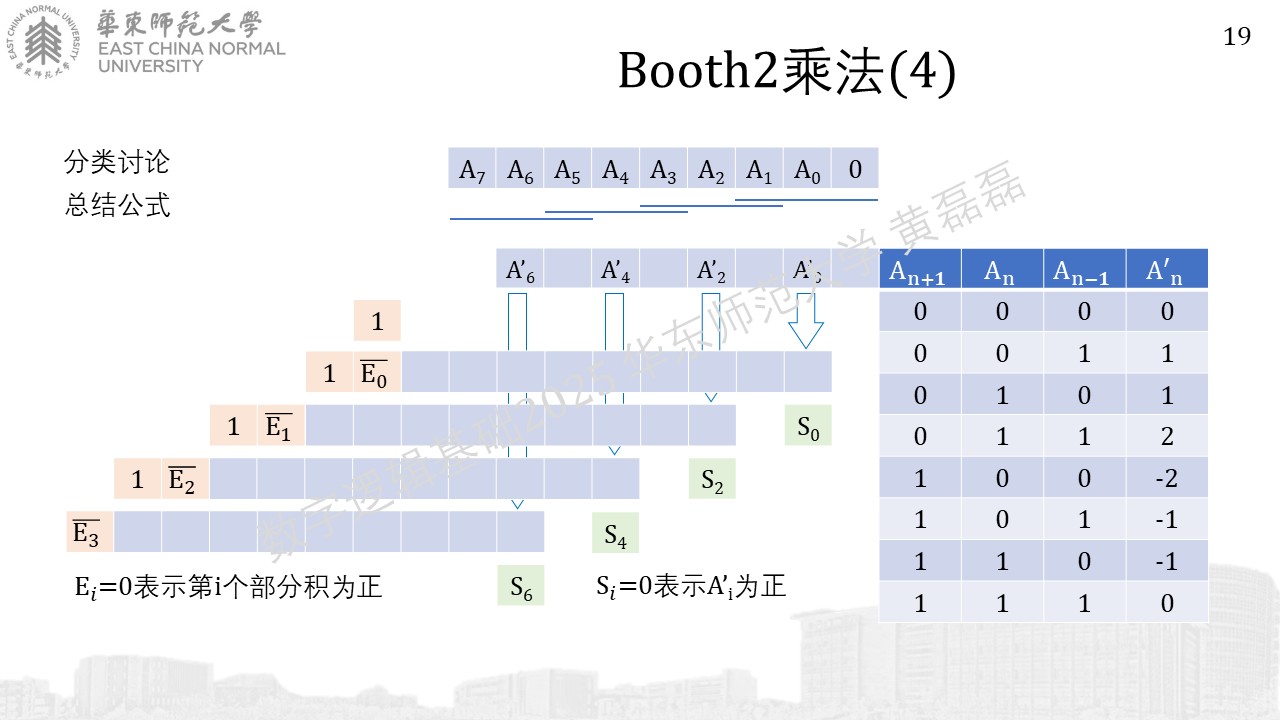

booth2

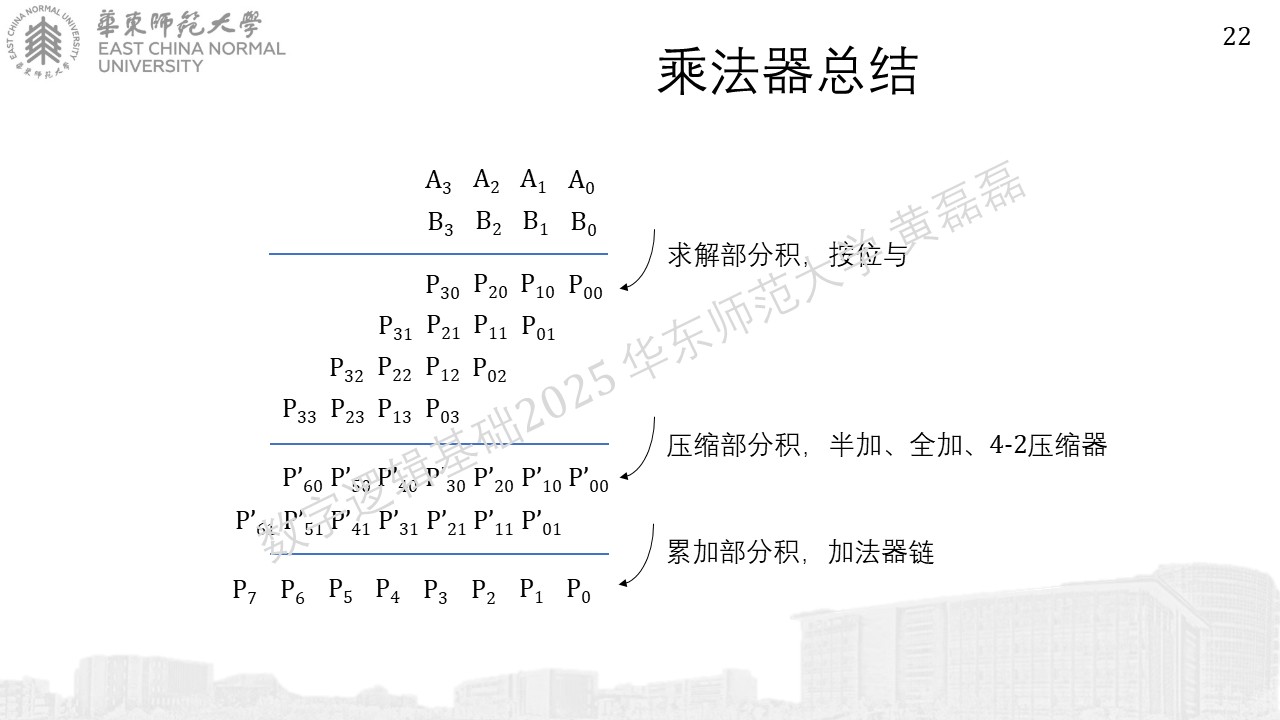

../_images/%E5%B9%BB%E7%81%AF%E7%89%87197.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87207.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872113.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87229.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87237.JPG
